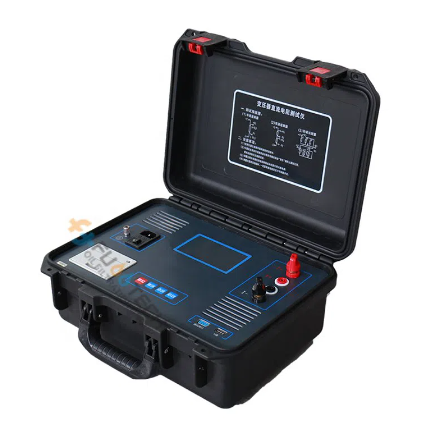

Fuootech FTDC-5A Transformer Winding DC Resistance Tester (<5mA, 40mA, 200mA, 1A, 5A)

Currect test range: <5mA, 40mA, 200mA, 1A, 5A

Measuring range: 100Ω-20KΩ (<5mA level)

1Ω-250Ω (40mA level )

100mΩ-50Ω (200mA level)

5mΩ-10Ω (1A level)

1mΩ-2Ω (5A level)

Accuracy: 0.2%±2 characters

Resolution: 0.1uΩ

Dimensions: 400*200*280mm

Weight: ≤11KG(including testing wire)

Power source: AC220V±10% 50Hz±5%

Using condition: 0~50°C ,Relative humidity ≤90%
