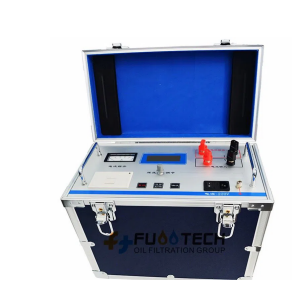

Fuootech FTDC-50A Transformer DC Winding Resistance Tester (2.5A, 5A, 10A, 20A, 50A)
ManufacturerFuootech(View more products from this manufacturer)
ModelFTDC-50A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Testing current: 2.5A, 5A, 10A, 20A, 50A
Testing range 2.5A: 10mΩ~8Ω
5A: 1mΩ~4Ω
10A: 1mΩ~2Ω
20A: 1mΩ~1Ω
50A: 1mΩ~400mΩ
Testing accuracy: ±0.2% (full-scale) ±2 digital
Data Storage: 255 data
Display: LCD Monitor; Resistance is displayed by 4 1/2 bit
Highest Resolution ratio: 0.1μΩ
Power supply: AC 230V±23V, 50Hz±2 Hz; Fuse 10A
Maximum power dissipation: 1200W; When the test current of 50A
Working environment: Temperature: 0℃~40℃
Relative humidity: ≤80%
Size: 220x440x480(mm)
Weight: 16kg with accessories
