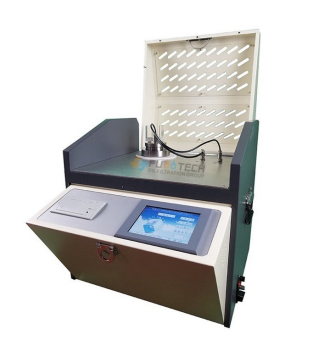

Fuootech FT-YJS-059A Insulating Oil Tan Delta Test System (5pF-200pF)

Display: English Touch Screen LCD

Measuring range: Capacitance: 5pF-200pF

Relative permittivity: 1.000-30.000

Dielectric loss factor: 0.00001-100

DC Resistivity: 2.5MΩm- 20TΩm

Measurement accuracy: Capacitance: ±0.5% + 1pF

Relative permittivity: ±1% reading

Dielectric loss factor ± (1% reading + 0.0001)

DC resistivity: ±10% reading

Resolution: Capacitance: 0.01pF

Relative permittivity: 0.001

Dielectric loss factor: 0.00001

Temperature range: 0-125 ° C

Temperature measurement error: ±0.5 °C

AC experimental voltage: 0-2200V,continuously adjustable, frequency: 50Hz

DC test voltage: 0-600V, continuously adjustable

Power consumption: 100W

Power supply voltage: AC 220V ± 10%

Power frequency Ambient temperature: 50Hz/60Hz ±1%, 0-40 °C

Relative humidity: <80%

Dimensions: 420mm × 380mm × 385mm

Weight: About 21 kg (free cup)
