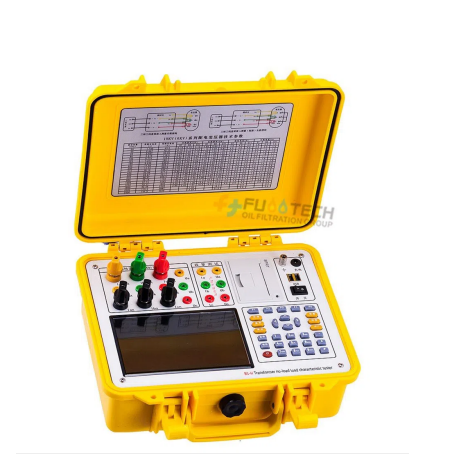

Fuootech BS-H Transformer Capacity Load and No-load Loss Tester (0 ~ 10V, 0 ~ 10A)

Input characteristic:

Active part: Voltage measuring range: 0 ~ 10V

Current measuring range: 0 ~ 10A

Passive part: Voltage measured range：0～750V width limited

Current measured range：0～100A internal range switching

automatically

Accuracy: Voltage： ±0.2%

Current： ±0.2％ range

ower： ±0.5%（CosΦ>0.1），±1.0%（0.05 < CosΦ< 0.1）

Temperature: －10℃～ +40℃

Charging power: AC160V～265V

Insulation: (1) The insulation resistance between voltage, current input terminal

(2) Between power supply input terminal and the shell can withstand 2kV (rms) for 1 minute

Host volume: 32cm×24cm×13cm

Weight: 3kg
