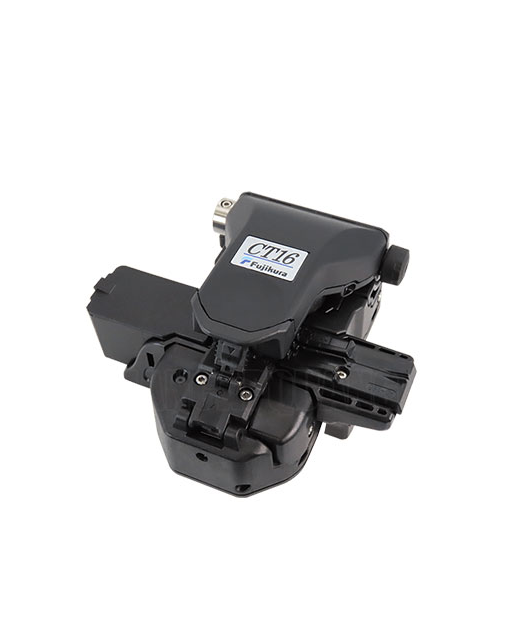

Fujikura CT16 Fiber Cleaver

Applicable Fiber

Fiber type:

Single-mode optical fiber

Multimode optical fiber

Fiber count: 2 single fibers

Cladding diameter: Approx. 125 μm

Applicable Coating

Adapter plate:

AD-16A: Max 900 μm coating diameter single fiber or 250 μm coating diameter for two fibers

AD-16B: Max. 3 mm jacket diameter

Fiber holders: FH-60 and FH-70 series – coating diameter dictated by specific fiber holder

Cleave Length

Adapter plate:

AD-16A: 5 – 20 mm

AD-16B: Coating diameter – 250 μm or less: 5-20 mm*1

251 μm-900 μm: 10-20 mm

901 μm-3 mm: 14-20 mm

Fiber holder: Approx. 10 mm

Cleave Angle

Single fiber: Avg. 0.3 to 0.9 degrees

Blade Life: Approx. 48,000 fiber cleaves

Physical description

Dimensions W: Approx.106 mm without projection

Dimensions D: Approx.95.5 mm without projection

Dimensions H: Approx.49 mm without projection

Weight Approx. 190 g including AD-16A

Environmental condition

Temperature Operate: -10 to 50°C

Storage: -40 to 80°C

Humidity Operate: 0 to 95%RH non-condensing

Storage: 0 to 95%RH non-condensing
