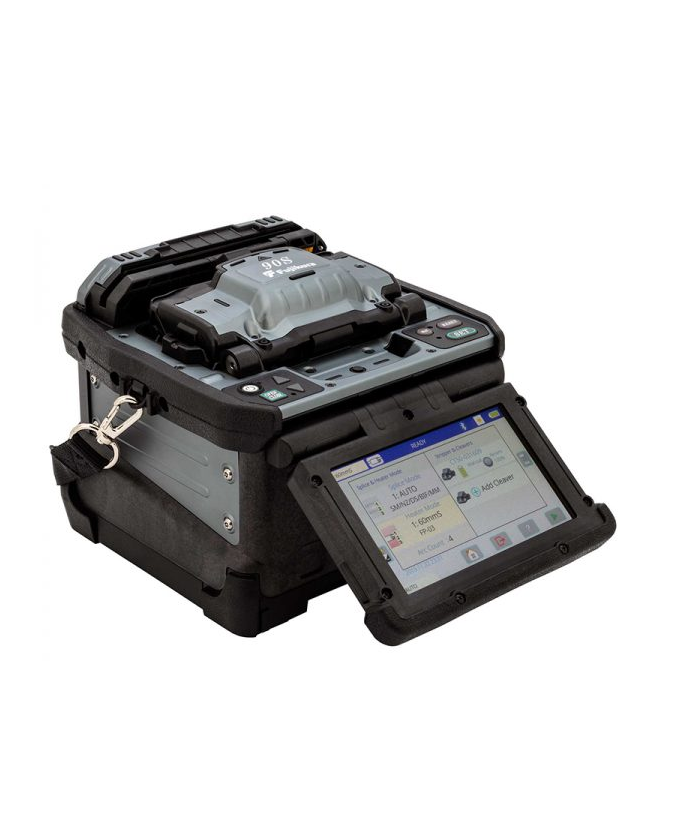

Fujikura 99S Fusion Splicer

Fiber alignment method: Active core alignment

Fiber count can be spliced: Single fiber

Applicable fiber

Fiber type:

Single mode optical fiber

Multi mode optical fiber

Cladding dia.: 80 to 150μm

Applicable coating

Sheath clamp

Coating dia.: Max. 3000μm

Cleave length: 5 to 16mm

Fiber splice performance

Splice loss:

ITU-T G.652: Avg. 0.02dB

ITU-T G.651: Avg. 0.01dB

ITU-T G.653: Avg. 0.04dB

ITU-T G.654: Avg. 0.04dB

ITU-T G.655: Avg. 0.04dB

ITU-T G.657: Avg. 0.02dB

Splice time

SM FAST mode: Avg. 7 to 9sec.

AUTO mode: Avg. 14 to 16sec.

Applicable protection sleeve

Sleeve type: Heat shrinkable sleeve

Sleeve length: Max. 66mm

Sleeve dia.: Max. 6.0mm before shrinking

Sleeve heat performance

Heat time:

60mm slim mode: Avg. 9 to 10sec.

60mm mode: Avg. 13 to 15sec.

Fiber tensile test force: Approx. 2.0N

Electrode life: Approx. 5000 splices

Physical description

Dimensions W: Approx. 170mm without projection

Dimensions D: Approx. 173mm without projection

Dimensions H: Approx. 150mm without projection

Weight: Approx. 2.8kg including battery

Environmental condition

Temperature:

Operate: -10 to 50 degreeC

Storage: -40 to 80 degreeC

Humidity:

Operate: 0 to 95%RH non-condensing

Storage: 0 to 95%RH non-condensing

Altitude: Max. 5000m

AC adaptor:

Input: AC100 to 240V, 50/60Hz, Max. 1.5A

Battery pack:

Type: Rechargeable Lithium lon

Output: Approx. DC14.4V/6380mAh

Capacity: Approx. 300 splice and heat cycles

Temperature

Recharge : 0 to 40 degreeC

Storage: -20 to 30 degreeC

Battery life: Approx. 500 recharge cycles

Display

LCD monitor: TFT 5 inches with touch screen

Magnification: 200 to 320x

Illumination:

V-grooves: LED lamp

Interface

PC: USB2.0 Mini B type

External: USB2.0 A type

LED lamp: Approx. DC5V, 500mA

Ribbon Stripper: Mini DIN 6pin DC12V, Max. 1A

Wireless: Bluetooth 4.1 LE

Data storage

Splice mode: 100 splice modes

Heat mode: 30 heat modes

Splice result: 20000 splices

Splice image: 100 images

Screw hole for tripod: 1/4-20UNC
