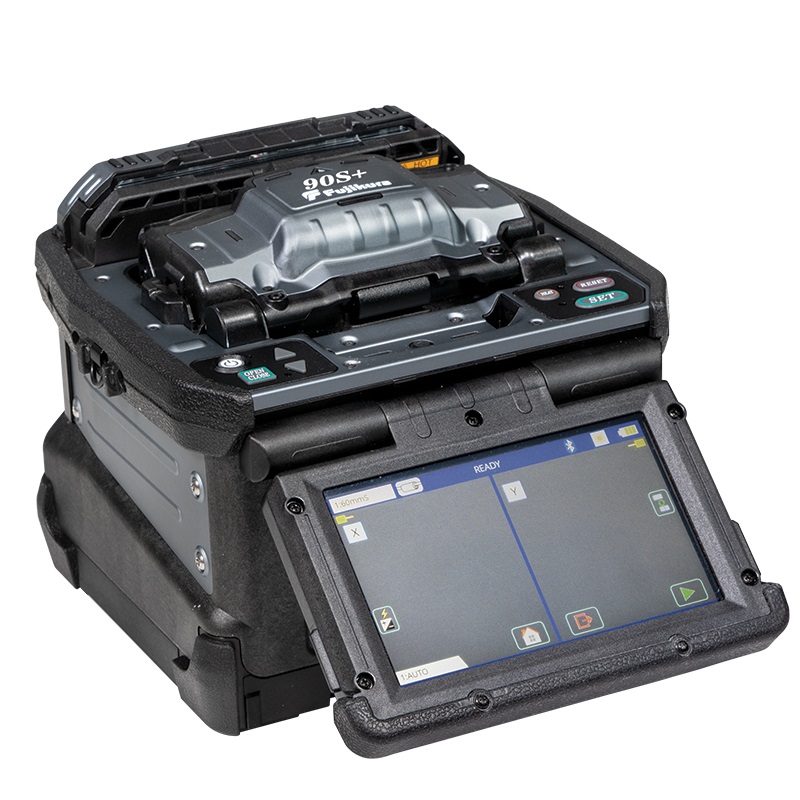

Fujikura 90S+ Core Alignment Fusion Splicer (SM FAST: 8~10s; AUTO: 14~16s)

Fiber alignment method: Active core alignment

Fiber count can be spliced: Single fiber

Applicable fiber

- Fiber Type:

+ Single mode optical fiber

+ Multi mode optical fiber

Fiber splice performance:

- Splice loss

+ ITU-T G.652: Avg. 0.02dB

+ ITU-T G.651: Avg. 0.01dB

+ITU-T G.653: Avg. 0.04dB

+ITU-T G.655: Avg. 0.04dB

+ITU-T G.657: Avg. 0.02dB

- Splice loss

+SM FAST mode: Avg. 8 to 10 sec.

+AUTO mode: Avg. 14 to 16 sec.

Fiber tensile test force: Approx. 2.0N

Electrode life: Approx. 5.000 splices

Physical description without projection (WxDxH): Approx. 170x173x150mm

Weight: Approx. 2.8 kg including battery

Environmental condition

Temperature operate: -10 to 50°C

Storage: -40 to 80°C

Humidity operate: 0 to 95% RH non-condensing

Storage: 0 to 95% RH non-condensing

Altitude: Max. 5.000m

Ac Adaptor: Input AC100 to 240V, 50/60Hz, Max. 1.5A

Battery pack

- Type rechargeable Lithium Ion

- Output Approx. DC14.4V / 6,380 mAh

- Capacity Approx. 300 splice and heat cycles

- Temperature:

+ Recharge: 0 to 40°C

+ Storage: -20 to 30°C

- Battery life: Approx. 500 recharge cycles

Display:

- LCD Monitor: TFT 5 inches with touch screen

- Magnification: 200 to 320x

Illumination: V-Grooves: LED lamp

Interface

- PC: USB2.0 Mini B type

- External led lamp: USB2.0 A type, Approx. DC5V, 500 mA

- Ribbon stripper: Mini DIN 6 pin, DC12V, Max. 1A

- Wireless: Bluetooth 4.1 LE

Data storage

- Splice mode: 100 splice modes

- Heat mode: 30 heat modes

- Splice result: 20.000 splices

- Splice image: 100 images

Included supply:

Core alignment fusion splicer Fujikura 90S+

Battery Pack

AC Adapter

AC Power Cord

USB Cable

Fusion Splicer Strap

Electrodes (spare)

Fiber Holder Set Plate

Carrying Case

Work Tray Left

Work Tray Right

Work Tray J-Plate

Tripod Screw

Carrying Case Strap

Alcohol Dispenser

Quick Reference Guide

Single Fiber Stripper

High precisionl Fiber Cleaver CT50

Buffer Tube Cutter

Cable Sheath Cutter (Outer Jacket Slitter and Cutter)

Datasheet
