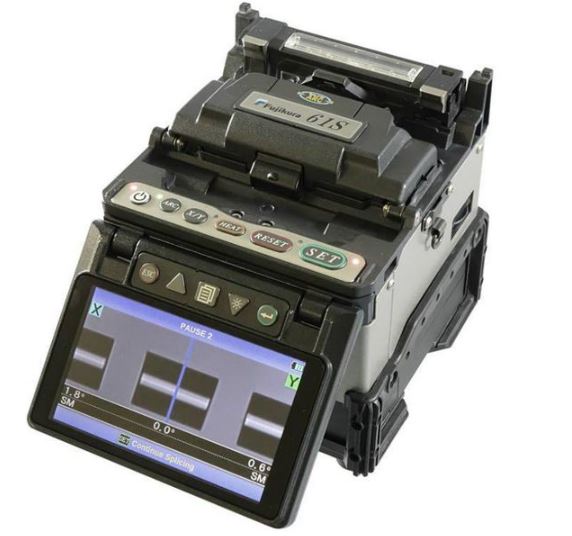

Fujikura 61S Fusion Splice

Applicable fibres: SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others

Cladding diameter: 80 to 150μm

Coating diameter :100un to 3mm

Fibre cleaved length: 5 to 16mm

Actual average splice loss : 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.

Splice time ;7sec:SM FAST mode, 10sec :SM AUTO mode, 6sec:ULTRA FAST

Return loss : 60dB or greater

Splicing modes: 100 splicer modes are available

Attenuation splice function: Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator

Storage of splice result: The last 10000 results to be stored in the internal memory.

Magnification: X / Y (300X magnification), or both X and Y simultaneously (160X magnification)

Viewing method: By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor

Tension test: 1.96 to 2.25N

Operating condition: 0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.:

Tube heater: Built-in auto-start tube heater with 10 heating modes and up to 20 for reference

Tube heat time: 13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available

Applicable protection sleeve length : 60mm, 40mm and a series of micro sleeves.

No. of splice/heating with battery: 200 times of splicing and heat shrinking under with 4000mAh BTR-09

Power supply: Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09

Terminals: USB2.0 ( Mini-B) for data and video signal transfer to PC.

Wind protection: Up to 15m/s wind velocity

Dimensions: 146(W) x 163(D) x 144(H) mm

Weight: 2.5kg, with BTR-09 battery

Electrode life: 3000 arc-discharges
