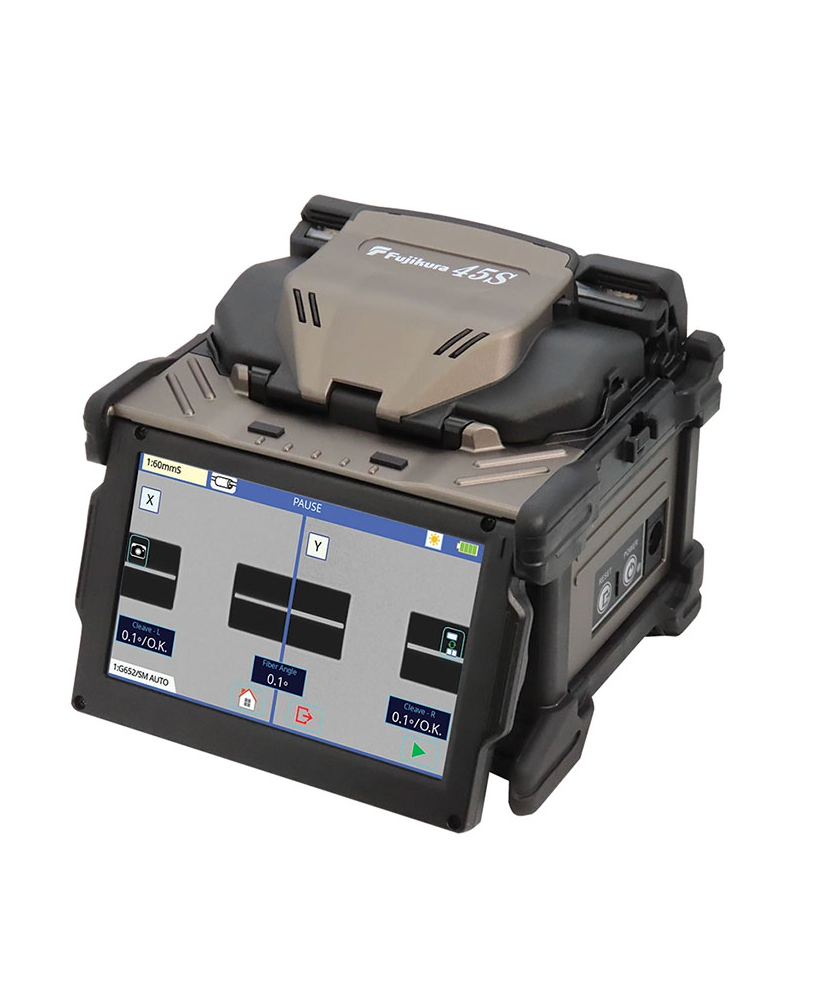

Fujikura 45S Fusion Splicer

Fiber alignment method: Active clad alignment

Fiber count can be spliced: Single fiber

Applicable fiber

Fiber type:

Single mode optical fiber

Multi mode optical fiber

Cladding dia.: Approx.125µm

Applicable coating

Sheath clamp:

Coating dia.: Max. 3000μm

Cleave length: 5 to 16mm

Fiber splice performance

Splice loss

ITU-T G.652: Avg. 0.03dB

ITU-T G.651: Avg. 0.01dB

ITU-T G.653: Avg. 0.05dB

ITU-T G.655: Avg. 0.05dB

ITU-T G.657: Avg. 0.03dB

Splice time: SM FAST mode: Avg. 6 to 8sec.

Applicable protection sleeve

Sleeve type: Heat shrinkable sleeve

Sleeve length: Max. 66mm

Sleeve dia.: Max. 6.0mm before shrinking

Sleeve heat performance

Heat time:

60mm mode: Avg. 21 to 23sec.

60mm slim mode: Avg. 16 to 18sec.

Fiber tensile test force: Approx. 2.0N

Electrode life: Approx. 6,000 splices

Physical description

Dimensions W: Approx.131mm without projection

Dimensions D: Approx.123mm without projection

Dimensions H: Approx.121mm without projection

Weight: Approx. 1.4kg including battery

Environmental condition

Temperature

Operate: -10 to 50°C

Storage: -40 to 80°C

Humidity

Operate: 0 to 95%RH non-condensing

Storage: 0 to 95%RH non-condensing

Altitude: Max. 5000m

AC adaptor

Input: AC100 to 240V, 50/60Hz, Max. 1A

Type: Rechargeable Lithium Ion

Output: Approx. DC14.4V, 3190mAh

Battery pack:

Type: Rechargeable Lithium Ion

Output: Approx. DC14.4V, 3190mAh

Capacity:

60mm mode: Approx. 200 splice and heat cycles

60mm slim mode: Approx. 230 splice and heat cycles

Temperature:

Recharge: 0 to 40°C

Storage less than 1 year: -20 to 20°C

Storage less than 3 months: -20 to 40°C

Battery life: Approx. 500 recharge cycles

Display

LCD monitor: TFT 4.95 inches with touch screen

Magnification: Approx. 132 to 300x

Illumination

V-grooves: LED lamp

Interface

PC: USB2.0 Mini B type

External LED lamp: USB2.0 A type, Approx. DC5V, 500mA

Wireless: Bluetooth 5.2

Data storage

Splice mode: 100 splice modes

Heat mode: 30 heat modes

Splice result: 20,000 splices

Splice image: 100 images

Screw hole for tripod: 1/4-20UNC

Other features

Automatic functions

Fusion control

Blade management and control

Reference guide: PDF file stored in splicer

Sheath clamp

Open with/without Wind Protector

Close with fiber setting

Easy sleeve positioning clamp

Electrode: Replaceable without tool
