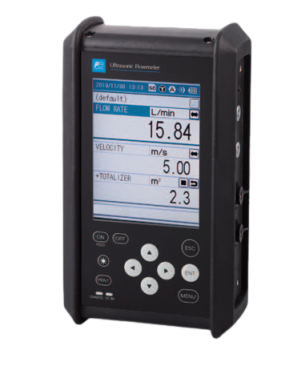

FUJI TECOM PORTAFLOW C Ultrasonic flowmeter (-40°C ~ +200°C)

Fluid: Uniform liquid through which ultrasonic wave can propagate (water, distilled water, alcohol, etc.)

Pipe inner diameter: 13 mm to 6000 mm (depending on detector)

Fluid temperature: -40°C to +200°C (depending on detector)

Velocity: 0 to ±32 m/s (minimum ±0.3 m/s)

Accuracy: ±1.0% of rate (depending on flow velocity)

Output cycl:e 1 s

Path: 1 path, transit time method

Display: TFT Color LCD with back light

Analog output: 1 point: 4–20 mA DC

Analog input: 2 point: 4–20 mA DC (2 points) or 4–20 mA DC (1 points) and 1–5 V DC (1 points)

Power supply voltage: Built-in battery (12 hours of continuous operation)

Transmitter enclosure: IP64 (no printer version)

Transmitter dimensions: 210 × 120 × 65 mm (no printer version)

Transmitter weight: Approx. 1 kg

SD card: 512 MB (stores 2 years’ worth data), Max. 8 GB
