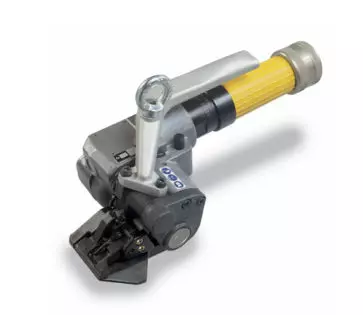

FROMM A452 Pneumatic pusher type tensioner for round objects (19-32/0.63-1.27)

Characteristics:

Strapping Qualities: Uniflex and Ultraflex max. 1100 N/mm2 / 160'000 psi

Strapping Dimensions: width 19.0 - 32.0 mm / thickness 0.63 – 1.27 mm

Weight: 4.35 kg / 9.6 lbs

Strap tension: 8500 N / 1900 lbs (6 bar / 87 psi)

Seals: Overlap seals

Sealing: With separate sealer model A412 or A461

Specifications

Straps Widths: 19-32 mm - ¾ - 1 ¼“ inch

Strap Thickness: 0.63 – 1.27 mm - .025-.050 inch

Max Tension: 8500 N - 1900 lbs

Tension Speed: 150 mm/sec - 5.9 inch/sec

Datasheet
