Franklingrid CTU-6000 KIT Battery Analyzer Kit (1.5 - 20.0 VDC; 100 - 19,990 Siemens)

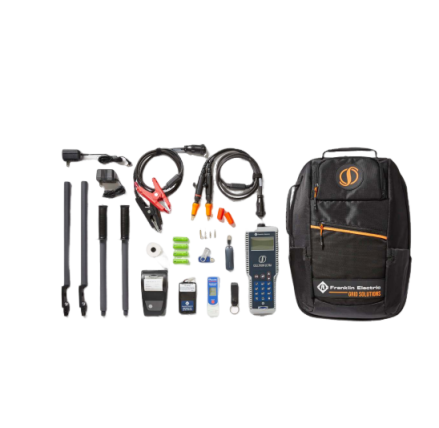

Included in the Kit:

CELLTRON Ultra battery analyzer

Test probes

Probe extenders

Test clamps

Temperature sensor

Portable printer

CELLTRAQ Express battery asset management software

Voltage Range: 1.5 - 20.0 Volts DC

Conductance Range: 100 - 19,990 Siemens

Accuracy: + 2% across test range

Voltmeter Resolution: 5mV

Storage Temperature: -4 to 180°F (-20 to 82°C)

Environmental Operating Range: 0 to +104°F (0 to +40°C); 95% relative humidity non-condensing

Analyzer Dimensions: 11in x 4in x 3in (279mm x 105mm x 80mm)

Analyzer Weight: 2.6 lb (1 Kg)

Case Dimensions: 19in x 15.5in x 7in (485mm x 395mm x 180mm)

Shipping Weight: 11 lb (5 Kg)

Applications: Tests individual lead acid cells or monoblocs (up to 16 Volts) in any common configuration, approximately 10-6000 Ah

Test Data Storage: 500 string locations of 480 test results per string stored internally

Calibration: Franklin Electric Grid Solutions will work with each customer to establish a regular calibration program if it is required by their quality or other management systems

Power Requirements: 9.6V, 1600mAH, NiMH; Internal swappable battery & charger

LCD - FSTN Display:

+ 2.619 in x 1.309 in

+ 128 x 64 pixels

+ 40 degree viewing angle

+ Contrast ratio 8

+ Green LED backlight

Data Transfer:

+ Infra-red HP protocol

+ Infra-red

+ Half-duplex IRDA protocol

+ RS-232 printer

+ Secure digital card

Over Voltage Protection: Auto-reset disconnect, Reverse polarity protected

Housing Material: Acid-resistant ABS plastic; Santoprene™ overmold
