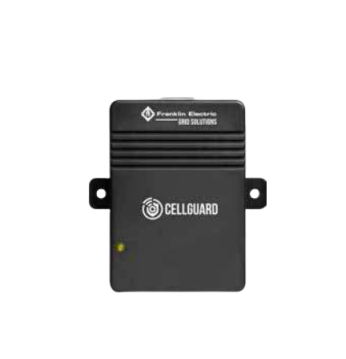

Franklingrid CGS3-06V-WD Wired Battery Monitoring Battery Sensor Module (6V batteries)

Operating temperature: -10°C to 50°C

Humidity: 5% to 95%

Monitoring Capability:

+ Maximum batteries on a single String: 180

+ Control module string maximum: 6

+ Control module battery maximum: 360

Battery types: 1.2V, 2V, 6V, 12V (capacity less than 3000AH)

Insulation: 2000 VAC

Weight (Battery Sensor): 75 g

Controller Module Communication Interfaces

+ Serial Comm. Port: RS485 Modbus/RTU

+ RJ45 Ethernet Comm. Port: SNMP, Modbus/TCP

+ RJ22 Module Comm. Port: COM1-COM3 UART

Power Requirements:

Battery sensor: < 13mA (1.2V, 2V) or 7mA (6V, 12V) from battery

Measurement & Range & Accuracy

Battery voltage: 1.2V, 2V, 6V, 12V +/- 0.1%

Battery resistance: 50 to 65535uΏ +/- 2%, 1uΏ

Battery temperature: -5°C to 99.9°C +/- 1°C

String current: 0 to 1000A +/- 2%

Ambient temperature: -5°C to 99.9°C +/- 1°C
