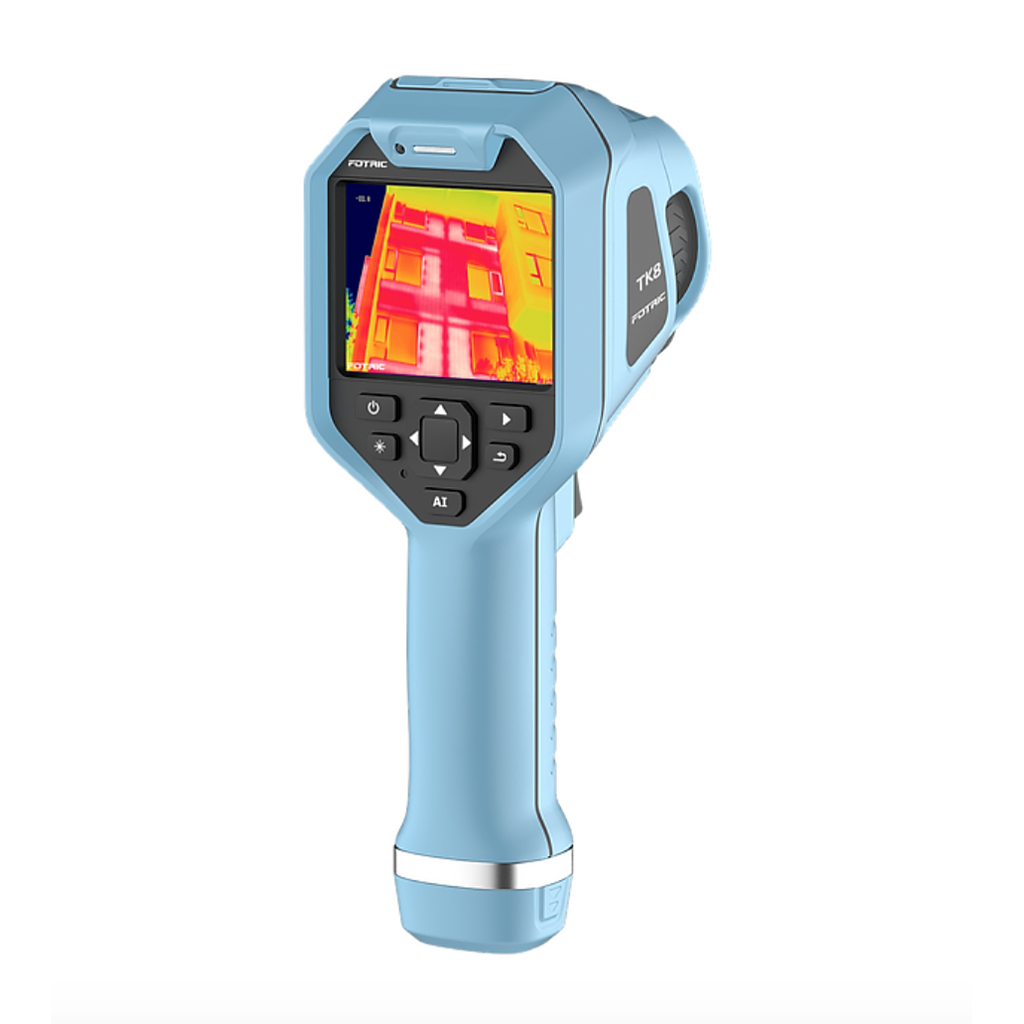

FOTRIC TK8 Entry-level Thermal Camera (-20°C ~ 350°C; 384*288)

IR Resolution(SR): 384*288

Thermal Sensitivity（NETD): 40mk(0.04°C)@30°C

Lens /Field of View: 25° *19°

Focus Mode: Manual Focus

Frame Rate: 40Hz

Build-in digital camera: 8 MP industrial camera

Image Modes: Thermal Image Mode, Visible Light Mode, Picture in Picture Mode, T-DEF (Image Fusion) Mode

Temperature Range: -20°C đến 350°C

Measurement Accuracy: ±2 °C or 2% , whichever is greater (at 25 °C ambient temperature）

Measurement Tools: Spot：6, Line：3, Rectangle/Circle：4

Display Screen: 3.5 inch Touch Screen

Palettes: 8 Palettes，8 Inverted Palettes

Storage Card: TF card, 32GB, expandable to 128GB

On Device Analysis: Support

Voice & Text Annotation: Support (120 seconds for voice annotation)

Remote Display (with AnalyzIR Software): Support

Battery: Rechargeable Li-ion, 3.6V, 5000mAh

Battery operation time: ≥4 hours

Operation temperature: -20°C to 50°C

Storage temperature: -40°C to 70°C without battery

Drop: 2m(GB/T 2423.8/IEC 60068-2-32)

Weight (include battery): 800g

Enclosure rating: IP54
