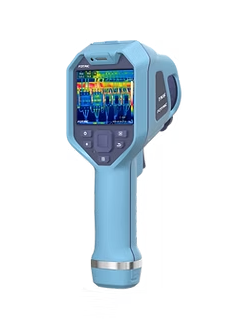

FOTRIC TK6 Thermal lmaging Camera (384x 288, 30Hz, 25° x 19°)

Features

Image Frame Rate: 30Hz

Measurement Spot: 20

Measurement Line: 10

Measurement Area: 10

Image Mode: Thermal image, Digital camera, Picture in Picture, T-DEF® blend

T-DEF®: Supports thermal and visible light image blend, transparency adjustable from 0% to 100%

T-TWB®: Supports histogram thermal color display

Basic Parameters

Infrared Resolution: 384 × 288

IR Detector Type: Uncooled FPA infrared detector

Thermal Sensitivity (NETD): 40mK (0.04°C) @ 30°C (86°F)

Detector Pitch: 17μm

Spectral Range: 8–14μm

Field of View (FOV): 25° × 19°

Spatial Resolution (IFOV): 1.14 mrad

Minimum Imaging Distance: 0.15m

Focus Mode: Manual focus

Complete Temperature Range: –20°C to 550°C (–4°F to 1022°F)

Accuracy: ±2°C (3.6°F) or ±2%, whichever is greater (ambient temperature at 15–35°C / 59–95°F, target object >0°C, calibration at 1 meter)

PC Software: AnalyzIR®

Display Screen: 3.5-inch Touch Screen

Palettes: 6 Palettes

Digital Camera: 5MP industrial camera

File Format: Radiometric thermal photo (JPEG), digital camera photo

Storage Card: TF card, up to 32GB capacity

Battery Type: Rechargeable Li-ion, 3.6V, 5000mAh

Battery Operating Time: ≥ 4 hours

Language: English
