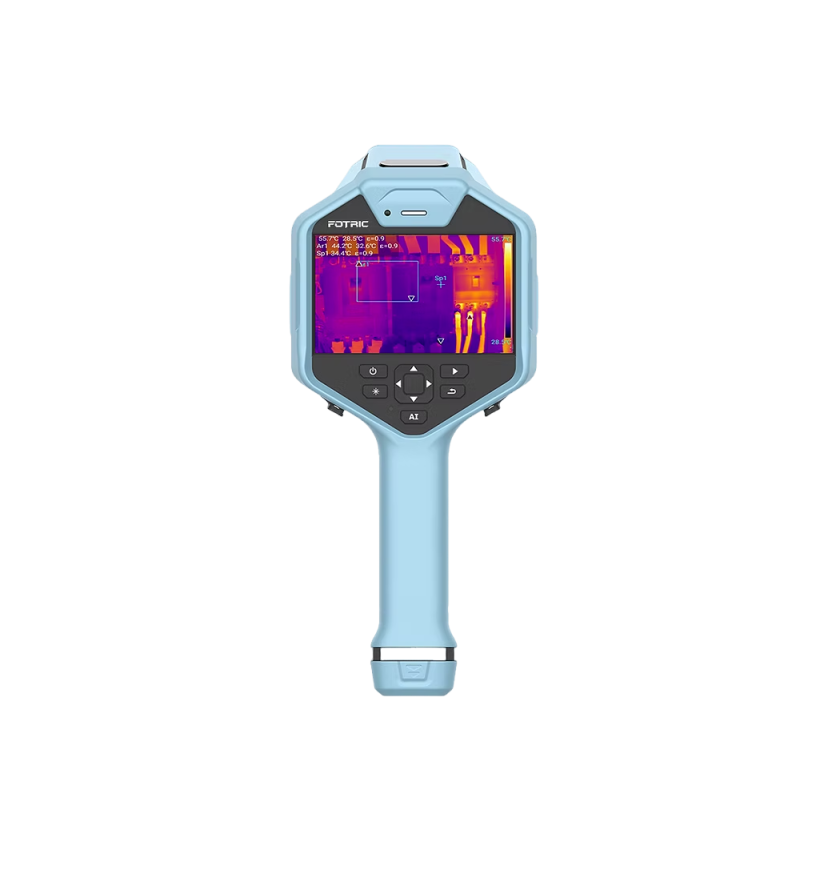

FOTRIC Ti5 Advanced Sharpview Thermal Camera (384*288; -20°C~550°C; lens 44°; Manual focus)

Infrared Resolution: 384*288

Thermal Sensitivity（NETD): <40mK@30℃

Temperature Measurement Range: -20~120℃ (-4~248 ℉ )，0~550℃ (32~1022 ℉ ), Intelligent range

User-definable Markers: 6 spot markers; 6 (rectangle or circle); 3 measurement lines

Focus Mode: TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus

Field of View（FOV): 44° *33°

Spatial Resolution (IFOV): 2mrad

Unique Features: TurboFocus®, T-DEF®, IREdge, T-TWB®

Frame Rate: 30Hz

Accuracy: ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter)

Storage Card: Micro SD card, 64G, expandable up to 1TB

PC Software: AnalyzIR®

On-device Analysis: Support

Image Mode: Thermal image, Digital Camera, Picture in Picture, and T-DEF®, High sensitivity mode (only active when the lens is identified as a gas detection lens)

Palettes: 10

Digital Camera: 8MP industrial-grade camera

Digital Zoom: 1-8x, continuous

Image Format: Radiometric thermal photo (JPEG.), non-radiometric digital camera photo

Software and Firmware Upgrade: Support OTA remote upgrade and SD card local upgrade

LED Flash Lamp: Supports torch illumination and flashlight mode

Battery: Rechargeable Li-ion, 7.4V, 3500mAh

Battery Operating Time: ≥ 4 hours per battery(depends on the environment and workload)

Operation Temperature: -20~50℃ (-4~122 ℉ )

Weight (include battery): 1.0kg (lens not included)

Drop: Engineered to withstand 2 meters (6.5 feet) drop with standard lens

Enclosure Rating: IP54(IEC 60529)
