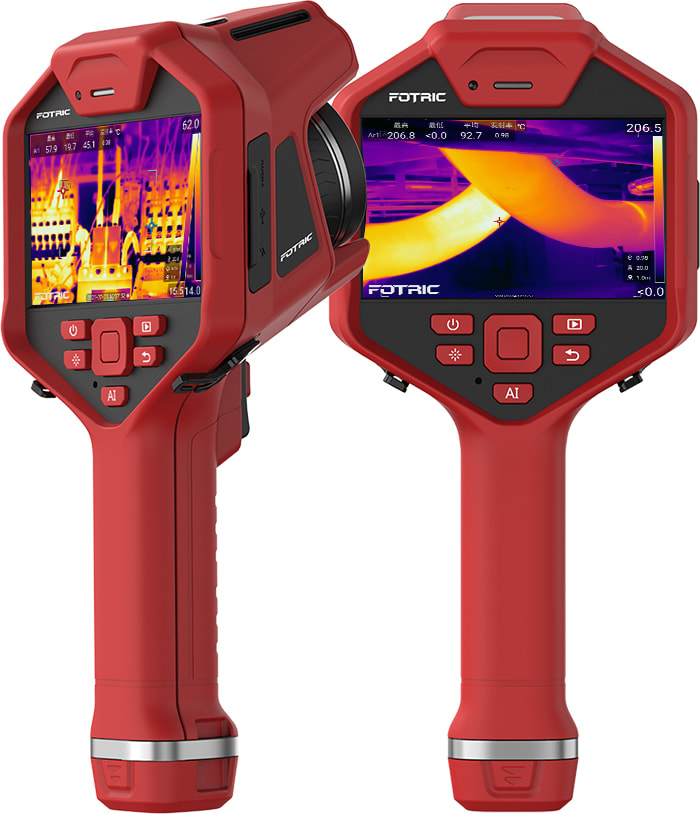

FOTRIC 346A Advanced Handheld Thermal Imager (20℃ ~ 1550℃, 1.14mrad)

Infrared Resolution: 384*288

Super Resolution (SR): 768*576

Temperature Measurement Range: ＜ 0.03℃ @30℃

High temperature expansion: 20℃ to 1550℃ (-4 ℉ to 2822 ℉ )

IFOV with Standard Lens: 1.14mrad

Digital Zoom: 1-10x,Continuous adjustment of roller

User-definable Spot Markers: 16 spot markers

User-defined Measurement Boxes: 12 (rectangle or circle

User-defined Measurement Lines: 8 measurement lines

Minimum Focus Distance: 0.1m

Laser Measurement: Distance, Length, and Area

Common Features

Field of View（FOV）: 25° ×19°

AI Programmable Key: Yes, for quick start

Navigation Satellite System: Yes, support GPS

Image Annotation: Favorites and AutoNaming

Infrared Spectral Band: 7μm~14μm

Detector Type: Uncooled infrared focal plane detector

Detector Pitch: 17μm

Frame Rate: 30Hz

Storage Memory: Standard issue 128GB SD memory card, expandable up to 2TB
