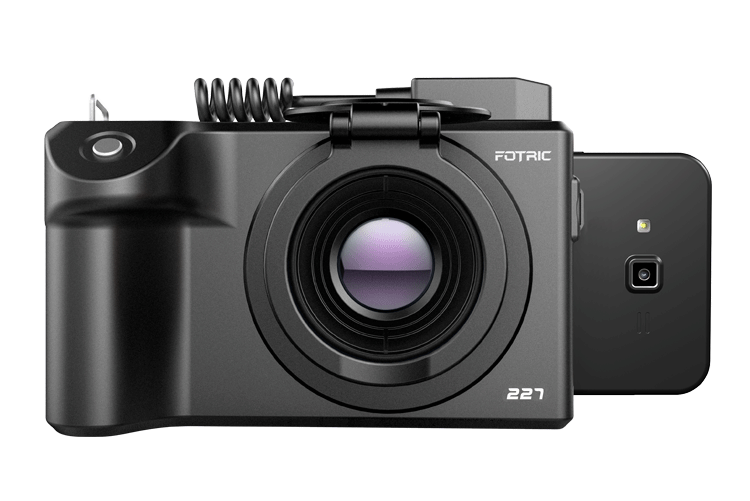

FOTRIC 227 Thermal Video Camera (-20°C~650°C)

Infrared Imaging

IR Resolution: 512 x 384 pixels (196,608 pixels) or 1024 x 768 w/ Super-Resolution

Field of View (FOV): 23°H x 17°V

Temperature Range: -20°C- +650°C (-4°F ~ +1202°F)

Minimum Focus Length: 0.1m (Standard Lens)

Spatial Resolution (IFOV): 0.78mRad, D:S 1282:1 (Std. Lens)

Thermal Sensitivity (NETD): ≤0.05°C @30°C

Measurement Accuracy: +2°C or ±2% whichever is greater @Environment Temperature 10°C~35°C

Focus: Manual

Spectral Range: 8~14µm

Detector Type: Focal Plane Array (FPA) uncooled microbolometer

Zoom: 10X continuous digital zoom

Image Processing

Palettes: 15 palette options (Gray White, Gray Red, Iron Red, Rainbow, etc.)

Palette Switching: Tap palette icon

Noise Calibration: Automatic noise calibration FFC/Manual noise calibration FFC

Measurement And Analysis

Correction Settings: Emissivity, reflected background temperature, relative humidity, ambient temperature, measuring distance, transmission

Emissivity Adjustment: 0.1-1.0

Regional Emissivity Adjustment: Support, on smartphone and in software

Automatic Capture of High, Low and Average Temperature: Support, on smartphone and in software

Isotherm: Above/Below threshold

ROI Measurement Modes:

- 12 moveable spots

- 12 moveable area boxes (min/max)

- 3 lines (min/max)

- Emissivity set for each ROI

Temperature Alarm: User-defined temperature threshold, audible and visual alarm Of above/below temperature threshold

Image Format: Standard JPEG, including raw temperature data, radiometric

Professional Function

Display Mode: Full screen thermal image, customer size/transparency/moveable dual vision fusion picture-in-picture (PIP)

Image Saving Modes: Single thermal image/Thermal & digital mix image

Take fully-radiometric Thermal Video Stream on Smartphone: Support, user-defined frame rate (up to 5 fps) or frame interval, up to 1,000 frames per video stream on smartphone

Take fully-radiometric Thermal Video Stream on PC: Support 1TB in software

Thermal Image Analysis on Smartphone: Support on site analysis

Thermal Video Analysis on Smartphone: Support on site analysis

Image Tagging/Labeling: Thermal image can be automatically labelled by scanning QR code or barcode

Image Annotation: Voice/Text Memos

Power Supply

Battery Type: Rechargeable Lithium-ion

Battery Operating Time: 10+ hours

Charging System: AC Power Adapter

Charging Voltage: 12V DC Charger

Environment

Operating Temperature: -20°C~50°C (-4°F~+122°F)

Storage Temperature: -20°C~50°C (-4°F~+122°F)

Humidity: < 90%RH

Physical Parameters

Enclosure Rating: IP40

FCC Certification: CFR 47 part 15.107/ CFR 47 part 15.109

Tripod Mounting: UNCI/4"-20

Weight: ~615g

Dimensions (LxHxW): 118x145x93.5mm

Standard Configuration

• Thermal imaging camera (built-in battery)

• Standard infrared lens

• Lens protective case

• Power adapter

• USB to micro USB OTG cable (left angle/right angle)

• USB to Micro USB OTG cable

• USB to Micro USB-C OTG cable

• USB to Micro cable

• USB to USB cable

• Hand wrist strap

• Getting started manual (with warranty card)

• Calibration certificate
