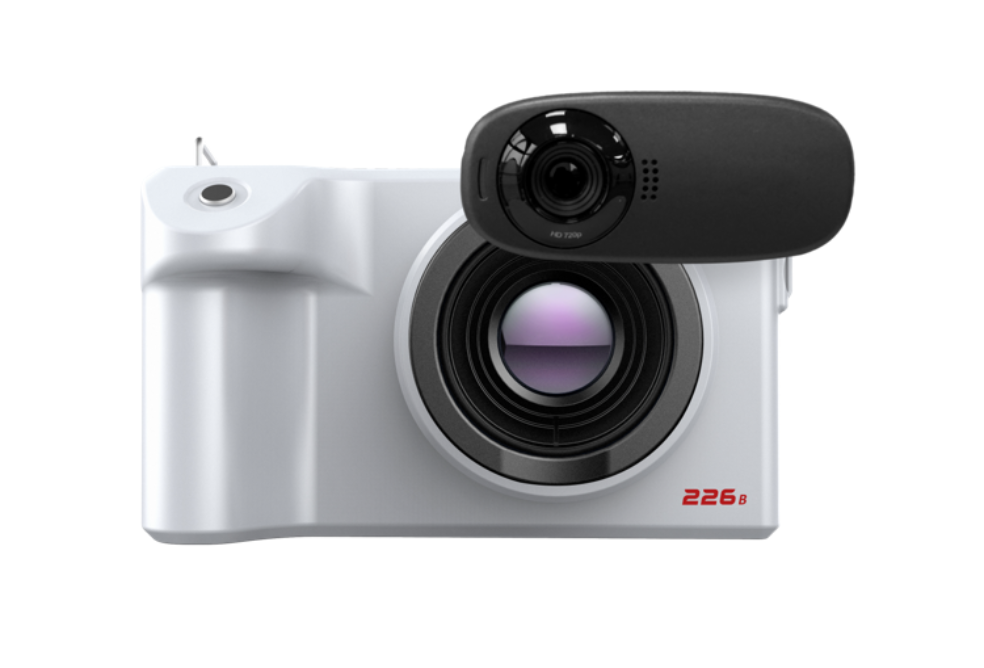

FOTRIC 226B Auto Body Temperature Screening Infrared Imager (20°C-60°C)

IR Resolution: 384 x 288 pixels

Thermal Sensitivity (NETD): <0.05°C@30°C

Field of View (FOV): 28°H x 21°V

Detector Type: Polysillicon-FPA, uncooled microbolometer, 17μm, Spectral Range 8-14μm

Frame Rate: 30Hz

Temperature Range: 20°C-60°C (68°F-140°F)

Temperature Stability: +/-0.5°C

AI Face Detection: Dual Light Detection (visible light and infrared thermal)

AI Body Temperature Algorithm: Calibrate alarm threshold in real time based on ambient temperature

Statistic Function: Automatic statistics of screening number

Shooting Mode: Automatic abnormal temperature snap shot or manual shooting

Alarm Function: Both color alarm and sound alarm

Color Pallet: Black-White/Iron/Rainbow

Image Format: Standard JPEG with temperature data

Interface Connection: USB

Software: WLIR Body Temperature Screening Software

Operating Temperature: 0°C-40°C (32°F-104°F)

Storage Temperature: -20°C-50°C (-4°F-122°F)

Enclosure Rating: IP40

Charging System: DC 12V Charger

Weight: +/- 560g

Dimensions (LxHxW): 97 x 145 x 93.5 mm

Tripod Mounting: UNC 1/4"-20

Standard Configuration: Fotric 2226B infrared imager, standard lens, DC adaptor, 3m USB, Calibration Certificate, Getting Started Manual (with warranty card)
