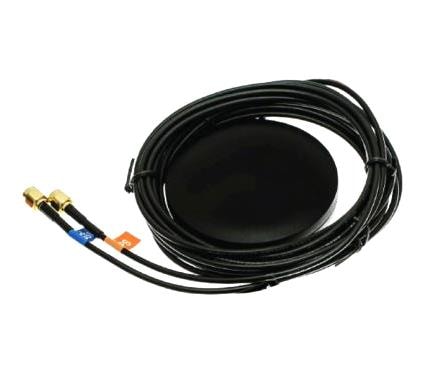

Fortebit OT2-AN Passive Antenna GSM/GNSS combo antenna with double SMA connector.

Gain: 2 dBi

VSWR: 1.5, 2.5

Style: Round

Width: 25 mm

Length: 25 mm

Bandwidth: 1615 MHz

Impedance: 50 Ohms

Cable Type: RG-174

Application: Cellular, Satellite

Unit Weight: 130 g

Polarization: RHCP

Mounting Style: Magnetic Mount

Number of Bands: 2 Band

Center Frequency: 1.59 GHz

Mechanical Style: Module

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM
