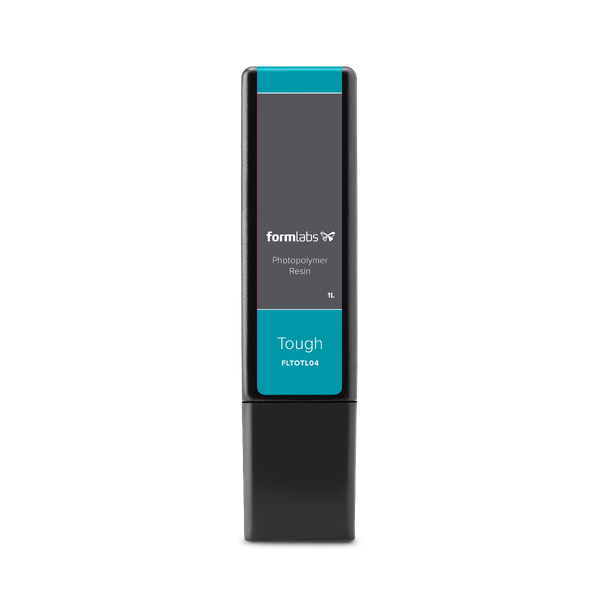

FORMLABS RS-F2-TOTL-05 Tough Resin Cartridge (Form 2 - 3)

Whether you’re optimizing your manufacturing process, rapidly iterating through designs, or assessing form, fit, and function, Formlabs Engineering Resins are formulated to withstand extensive testing and perform under stress.

Tough Resin is the strongest and stiffest material in our functional family of Tough and Durable Resins. Choose Tough Resin for prototyping strong and sturdy parts that should not bend easily.

Strong and stiff prototypes

Jigs and fixtures requiring minimal deflection

Simulating the strength and stiffness of ABS

Supports print resolutions: 100 and 50 microns.

Post-curing required.

Ultimate Tensile Strength: 55.7 MPa/ 8080 psi

Flexural Modulus: 1.6 GPa / 241 ksi

Tensile Modulus: 2.7 GPa/ 387 ksi

Elongation: 24 %

Notched IZOD: 38 J/m / 0.71 ft-lbf/in

Heat Deflection Temp. @ 1.8 MPa: 45.9 °C/ 114.6 °F

Heat Deflection Temp. @ 0.45 MPa: 48.5 °C/ 119.3 °F

Thermal Expansion (23 – 50 °C): 119.4 µm/m/°C / 66.3 μin/in/°F

Datasheet
