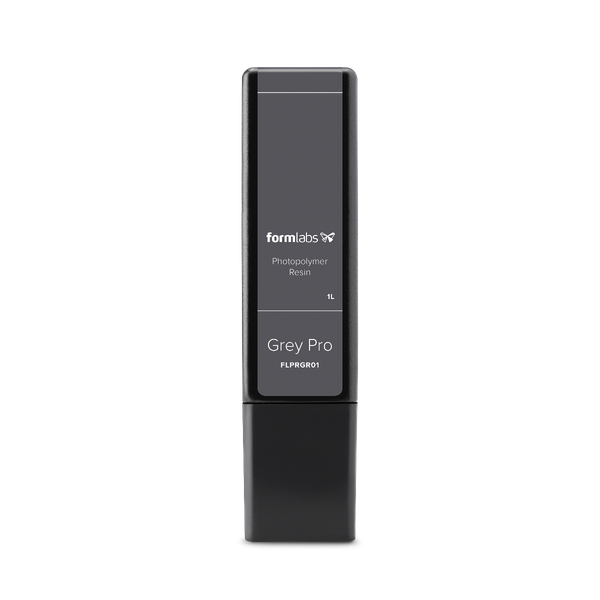

FORMLABS RS-F2-PRGR-01 Grey Pro Resin Cartridge (Form 2 - 3)

Whether you’re optimizing your manufacturing process, rapidly iterating through designs, or assessing form, fit, and function, our Engineering Resins for the Form 2 are formulated to withstand extensive testing and perform under stress.

Grey Pro Resin’s high precision, moderate elongation, and resistance to deformation over time make it a versatile material suitable for a wide range of engineering applications.

Supports print resolutions: 100 and 50 microns.

Post-curing required.

Requires Resin Tank LT for Form 2.

Requires Form 3 Resin Tank V2 for Form 3.

Grey Pro Resin decreases the lifetime of resin tanks.

Notice: Form 3 Resin Tank V1 is incompatible with Rigid, Grey Pro, and Elastic Resins. There are two versions of the Form 3 Resin Tank: Tank V1 and Tank V2.

Ultimate Tensile Strength: 61 MPa / 8876 psi

Flexural Modulus: 2.2 GPa / 319 ksi

Tensile Modulus: 2.6 GPa / 377 ksi

Elongation: 13 %

Notched IZOD: 18.7 J/m / 0.351 ft-lbf/in

Heat Deflection Temp. @ 1.8 MPa: 62.4 C / 144.3 °F

Heat Deflection Temp. @ 0.45 MPa: 77.5 C / 171.5 °F

Thermal Expansion (23 – 50 °C): 78.5 um/m/°C / 43.4 μin/in/°F

Datasheet
