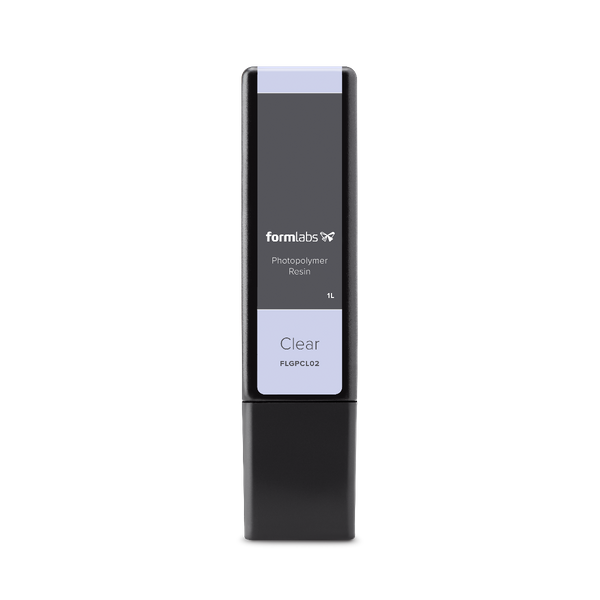

FORMLABS RS-F2-GPCL-04 Clear Resin Cartridge (Form 2, Form 3, and Form 3B)

3D print strong, precise concept models and prototypes that bring your ideas to life with Formlabs’ library of Standard Resins.

Clear Resin is great for fluidics and moldmaking, optics, lighting, and any parts requiring translucency or showcasing internal features. Stereolithography 3D printing technology makes clear prints possible on the desktop.

Supports print resolutions: 100, 50, and 25 microns (Form 2, Form 3, and Form 3B).

Ultimate Tensile Strength: 65 MPa/ 9380 psi

Flexural Modulus: 2.2 GPa/ 320 ksi

Tensile Modulus: 2.8 GPa/ 402 ksi

Elongation: 6.2%

Notched IZOD: 25 J/m / 0.46 ft-lbf/in

Heat Deflection Temp. @ 264 psi: 58.4 °C/ 137.1 °F

Heat Deflection Temp. @ 66 psi: 73.1 °C/ 73.1 °C

Datasheet
