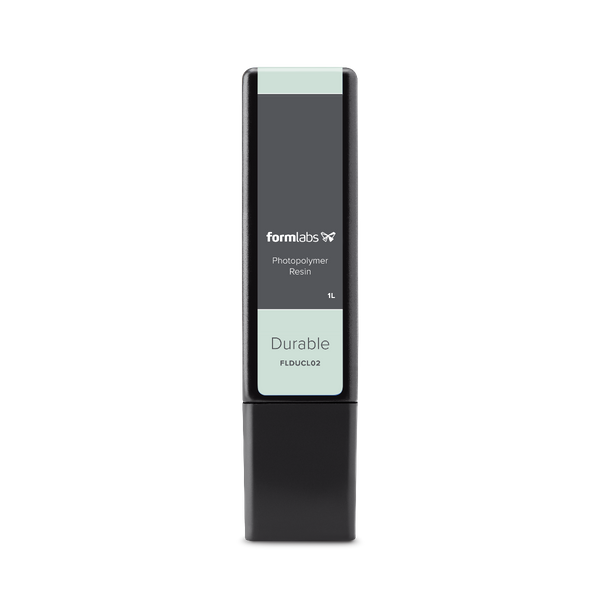

FORMLABS RS-F2-DUCL-02 Durable Resin Cartridge (Form 2 - 3)

Whether you’re optimizing your manufacturing process, rapidly iterating through designs, or assessing form, fit, and function, Formlabs Engineering Resins are formulated to withstand extensive testing and perform under stress.

Durable Resin is the most pliable, impact resistant, and lubricious material in our functional family of Tough and Durable Resins. Choose Durable Resin for squeezable parts and low-friction assemblies.

Squeezable prototypes and low friction assemblies

Jigs and fixtures undergoing significant impacts

Low friction assemblies and non-degrading surfaces

Simulating the strength and stiffness of polyethylene (PE)

Supports print resolutions: 100 and 50 microns.

Post-curing required.

Ultimate Tensile Strength: 31.8 MPa / 4.61 ksi

Flexural Modulus: 0.82 GPa/ 119 ksi

Tensile Modulus: 1.26 GPa / 183 ksi

Elongation: 49 %

Notched IZOD: 109 J/m / 2.05 ft-lbf/in

Heat Deflection Temp. @ 0.45 MPa: 43.3 °C / 110 °F

Thermal Expansion (23 – 50 °C): 145.1 μm/m/°C / 80.6 μin/in/°F

Datasheet
