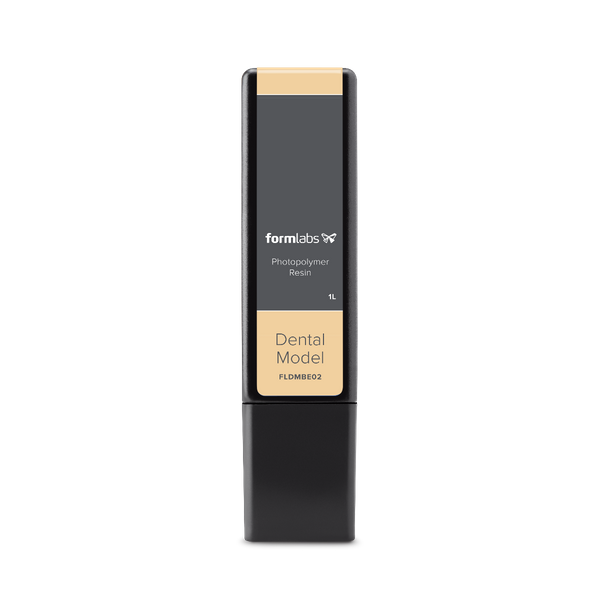

FORMLABS RS-F2-DMBE-02 Dental Model Resin Cartridge (Form 2, Form 3, and Form 3B)

Model Resin is a high-precision, high-accuracy resin with a smooth matte surface finish, perfect for both dental and general model making.

For model making and digital sculpting, Model Resin offers high detail, smooth surface finish, and a neutral base tone great for finalizing form and client approval of designs such as character models, figurines, and miniatures.

For dental professionals, Model Resin makes it easy to switch from analog to digital model production for crown and bridge models, with a color similar to gypsum. Print crisp margins and contacts within ±35 microns, and removable dies with consistently tight fit.

Supports print resolutions: 100, 50, and 25 microns (Form 2, Form 3, and Form 3B); 140 microns (Form 2).

Post-curing required.

Tensile Strength at Yield: 61 MPa / 8820 psi

Tensile Modulus: 2.7 GPa / 97 ksi

Elongation at Failure: 5 %

Flexural Modulus: 2.5 GPa / 365 ksi

Flexural Strength at 5% Strain: 95.8 MPa / 13900 psi

Notched IZOD: 33 J/m / 0.6 ft-lbf/in

Heat Deflection Temp. @ 264 psi: 45.9 °C / 114.6 °F

Heat Deflection Temp. @ 66 psi: 48.5 °C / 119.3 °F

Datasheet
