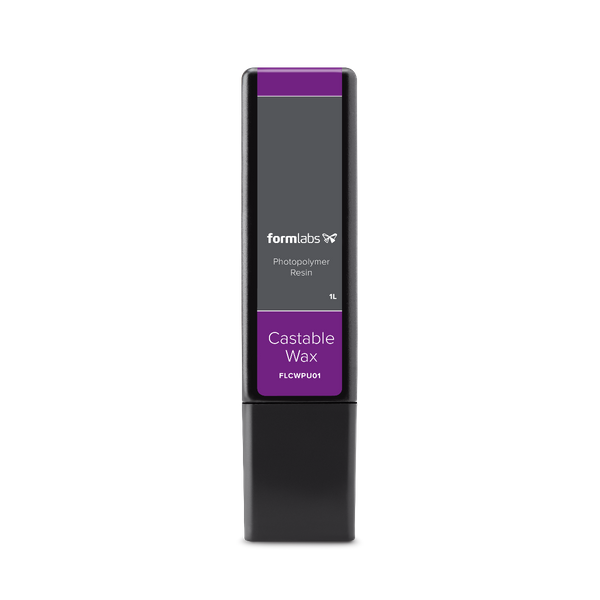

FORMLABS RS-F2-CWPU-01 Castable Wax Resin Cartridge (Form 2 - 3 - 3B)

A 20% wax-filled photopolymer for reliable casting with zero ash content and clean burnout, highly accurate Castable Wax Resin captures intricate features and offers the smooth surfaces stereolithography 3D printing is known for.

Printed parts are strong enough to handle with no post-cure required, allowing for a faster, simpler workflow.

For jewelry: Printed parts are suitable for both custom try-ons and final production through direct investment casting.

Print at 50 or 25 microns.

For dental: Printed patterns are suitable for casting and pressing copings and substructures, full contour crowns, and removable partial denture frameworks with accurate, sealed margins.

Print at 50 microns to reduce print times while ensuring clinically acceptable accuracy.

Supports print resolutions: 50 and 25 microns (Form 2, Form 3, and Form 3B).

No post-curing required.

Resin Tank LT recommended for Form 2.

Ultimate Tensile Strength: 11.6 MPa / 1680 psi

Young’s Modulus: 220 MPa / 32 ksi

Elongation at Break: 13 %

Temp @ 5% Mass Loss: 249 °C / 480 °F

Ash content (TGA): 0.0-0.1%

Datasheet
