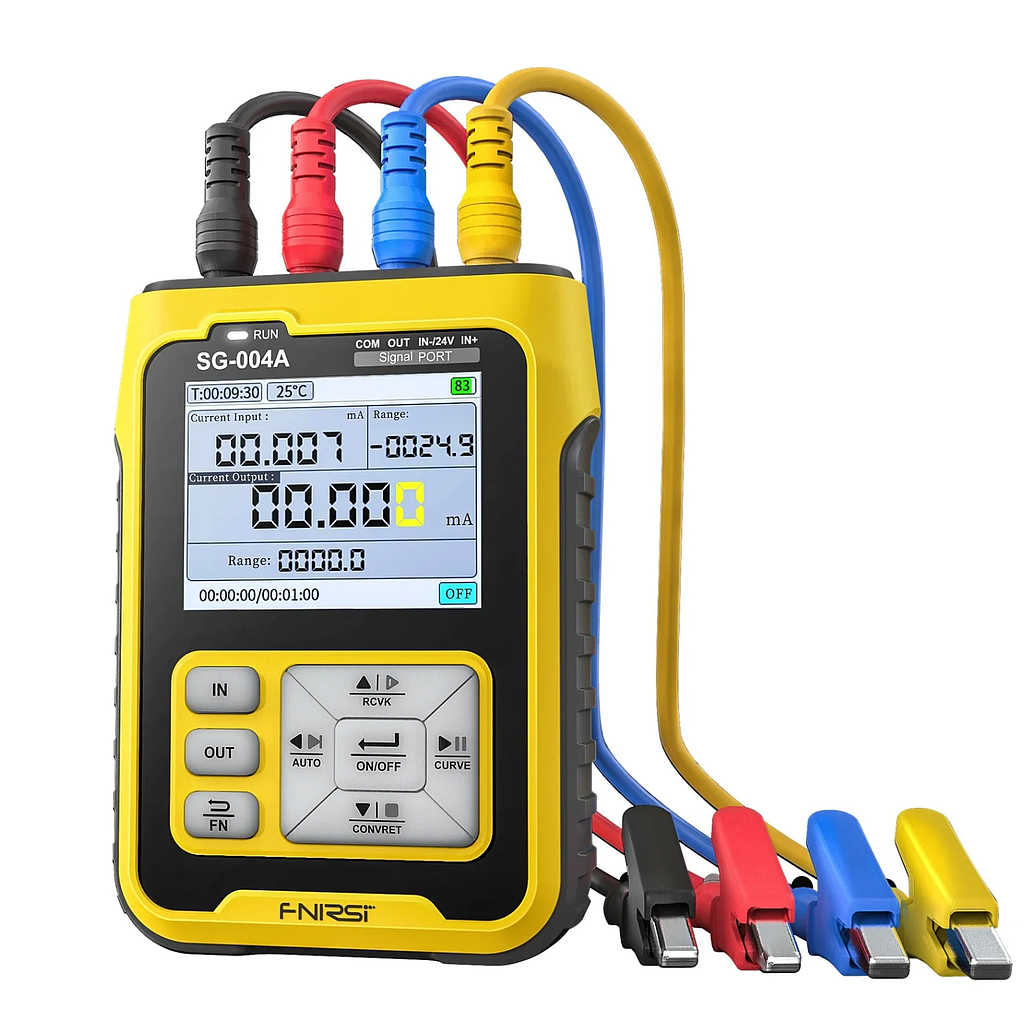

FNIRSI SG-004A Multi-functional Signal Generator (0-9999Hz)
Basic Specification:
Screen: 2.4"TFT Full Color HD display
Product Size: L82*W27*H112mm
Product Weight: 0.050 kg / 1.76 ounces
Battery: 3000mAh rechargeable lithium battery
Charging Type: USB-C port 5V-12V/10W(Max)
Standby Time: 24h
Output Signal
Active Current: 0-24mA
Passive Current: 0-24mA
Voltage: 0-24V
Frequency / PWM: 0-9999Hz
24V Loop: 0-24mA
Thermocouple: -10~100mV
Resistance / Thermal Resistance: 0-390Ω
Input Signal
Active Current: 0-24mA
Voltage: 0-24V
Frequency / PWM: 0-9999Hz
Thermocouple: -10~100mV
Resistance / Thermal Resistance: 0-400Ω
