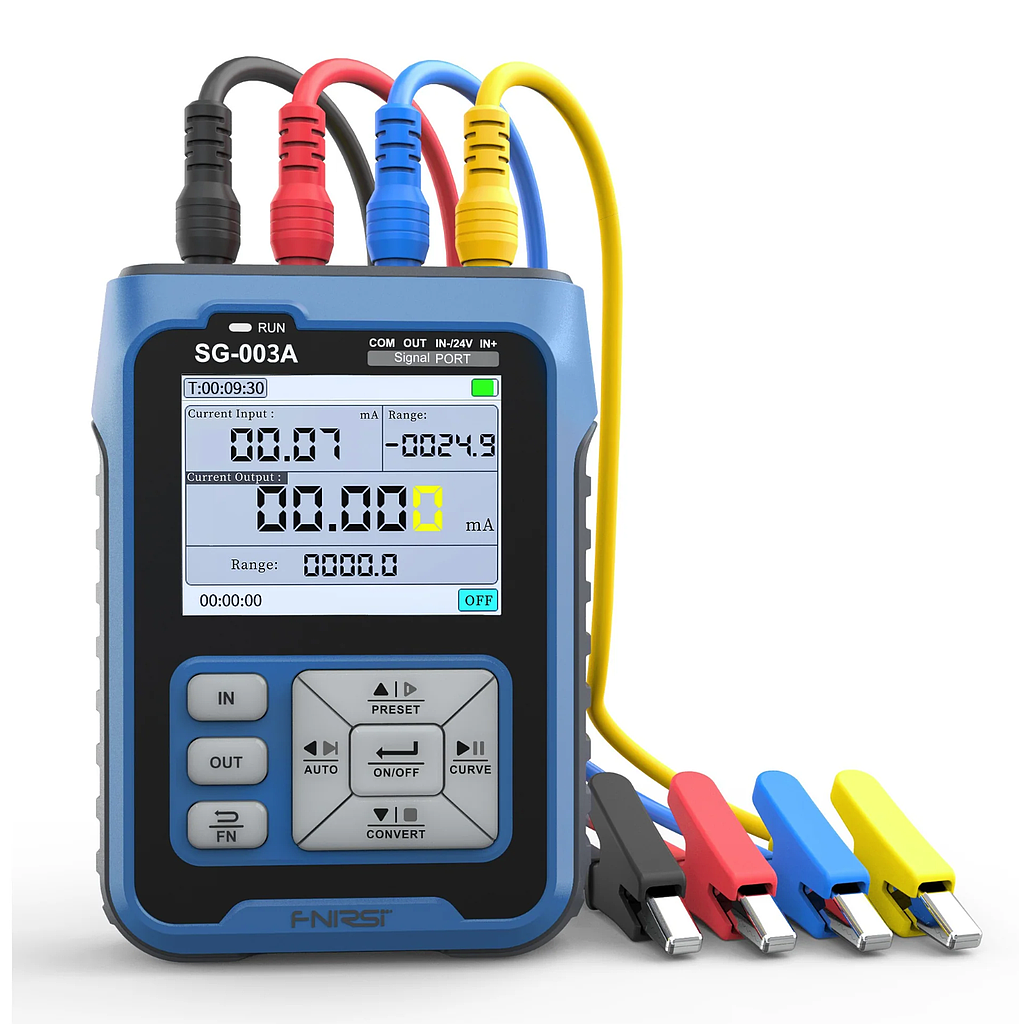

FNIRSI SG-003A Signal Generator

Active Current Output

Range: 0~24mA

Resolution: 0.01mA

Precision: ±(0.1%+0.005)

Max Load: 750Ω

Passive Current Output

Range: 0~24mA

Resolution: 0.01mA

Precision: ±(0.1%+0.005)

External Power Supply: 0~30V

Voltage output

Range: 0~24V

Resolution: 0.01V

Precision: ±(0.1%+0.005)

24V Loop

Range: 0~24mA

Resolution: 0.01mA

Precision: ±(0.1%+0.005)

Frequency/PWM Output

Range: 0~9999Hz

Resolution: 5 digits

Precision: ±2%

Current Input

Range: 0~24mA

Resolution: 0.01mA

Precision: ±(0.1%+0.005)

Voltage Input

Range: 0~30V

Resolution: 0.01V

Precision: ±(0.1%+0.005)

Battery: A single 3.7V 3000mAh lithium battery power supply

Display Size: 2.4 Inch TFT Full Color LCD Screen

Size: L82*W27*H112mm

Weight: 165g

Packing List

Alligator Test Clips: 4

USB Charger: 1

003A Signal Generator: 1

User Manual: 1

Type-C Cable: 1

Packing Box: 1

Manual
