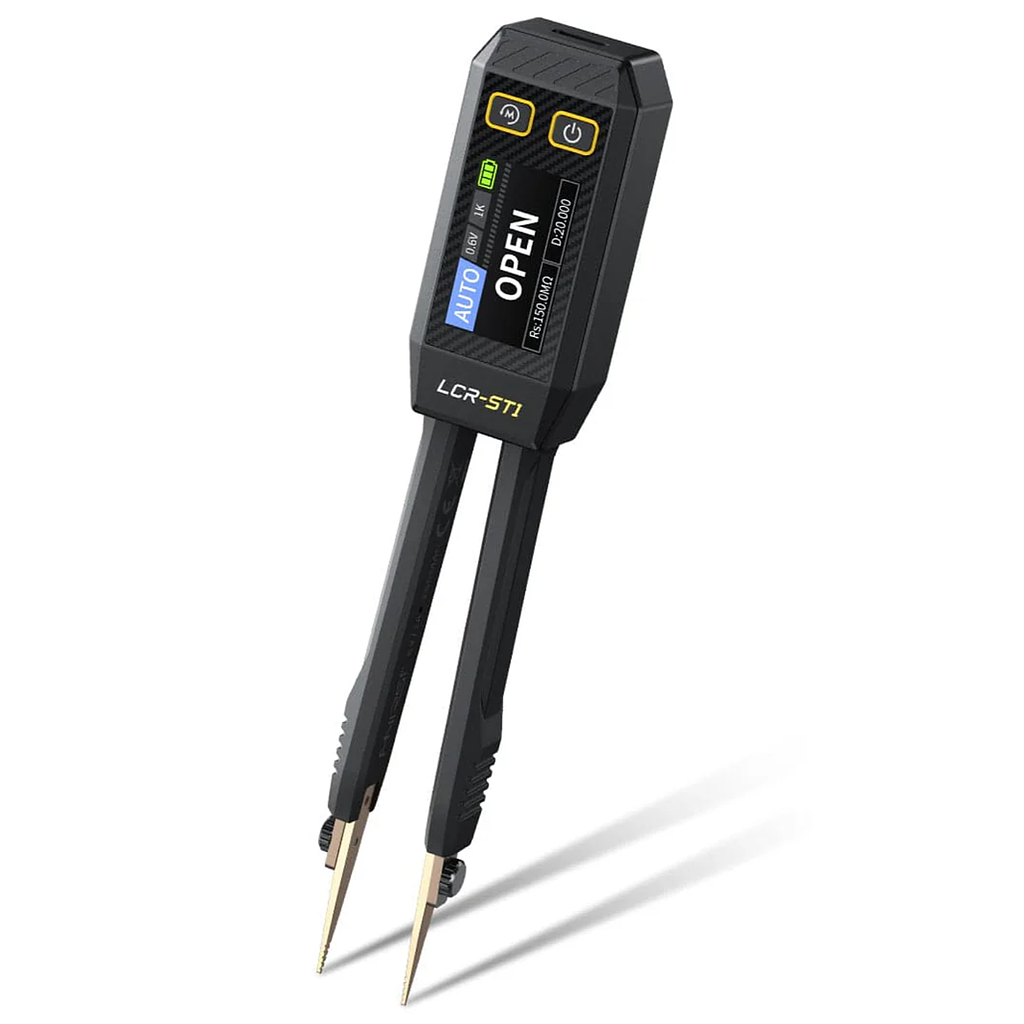

FNIRSI LCR-ST1 Mini Smart Digital Tweezer LCR SMD ESR Tester (1pF-22mF; 1μh-10H; 10mΩ-10MΩ)

Capacitance Range: 1pF-22mF

Inductance Range: 1μh-10H

Resistance Range: 10mΩ-10MΩ

Diode: On voltage 0.7V

Frequency Test: 100Hz, 1kHz, 10KHz

Level Test: 0.3V, 0.6V RMS

Parameter Display: ESR, D value, Q value, Z value, X value

Display: 1.14" color screen

Charging Interface: Type-C, 5V/A

Power Supply: 250mAh lithium battery

Auto Recognition Measurement: Support

Replaceable Tweezer Head: Support

Auto Shutdown: Support

Data Hold: Support

History Record: Connect to PC to view and export

Language: English, Chinese

Size: 28x19x150mm

Weight: 41g

Packing list:

1. LCD-ST1 Tweezer

2. Hook Head (one pair)

3. Magnetic Patch

4. USB Date Cable

5. User Manual

6. Packing Box

7. Tool Bag

Manual
