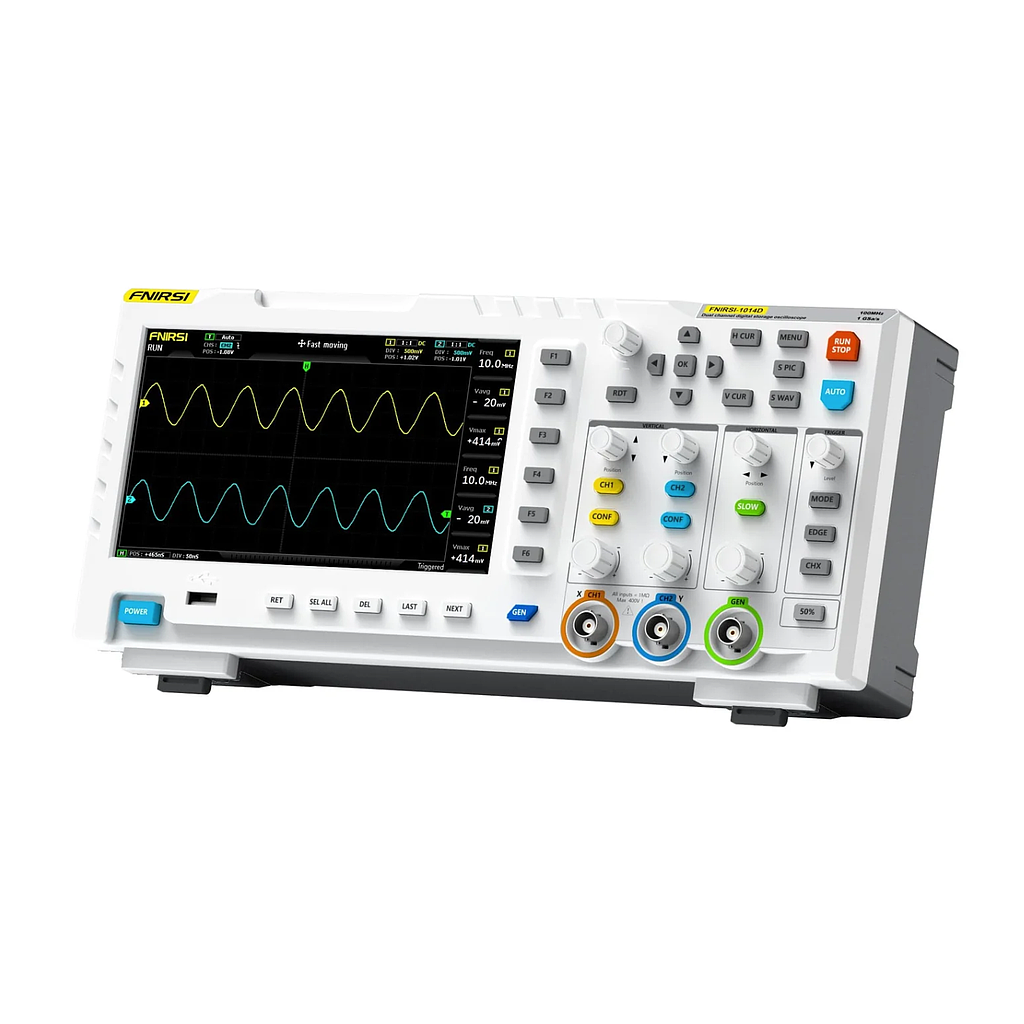

FNIRSI FNIRSI-1014D Digital Oscilloscope (100MHz*2; 1GSa/s; 2 channels)

Digital Oscilloscope Specification:

Channels: 2

Material: High-quality ABS

Analog Bandwidth: 100MHz * 2

Sampling Rate: 1GSa/s

Vertical Sensitivity: 50mV/div ~ 500V/div

Horizontal Timebase: 5OS/div ~ 10nS/div

Storage Depth: 240Kbit

Input Resistance: 1MΩ

ADC Precision: 8bits

Rise Time: < 3nS

Coupling: AC/DC

Trigger Modes: Auto / Normal / Single

Trigger Edge: Rising edge / Falling edge

External Trigger Voltage: 0~40 V

Maximum Test Voltage: 40V (lX probe), 400V (10X probe)

Waveform Manager: Support (1000 pic + 1000 waveform)

USB Export: Support

Capture Output: Support

Power Supply: 5V 2A/3A/4A

Frequency Precision: ±0.01%

Roll Mode: Support

One-button AUTO: Support

Display: 7-inch 800*480 resolution color TFT LCD

Dimensions: 310mm * 145mm * 70mm

Parameter: 12 kinds in total

Generator: 14 kinds in total

Signal Generator Specification:

Channels: 1

Waveform Type: 14 standard signals (@ 2.5vpp) + 1 customizable signal (Only the Frequency is adjustable)

Capture Output: Supprot

Sine Wave Max Frequency: 10MHz

Other Wave Max Frequency: 2MHz

Customize Signal Max Frequency: 1MHz

Frequency Resolution: 1Hz
