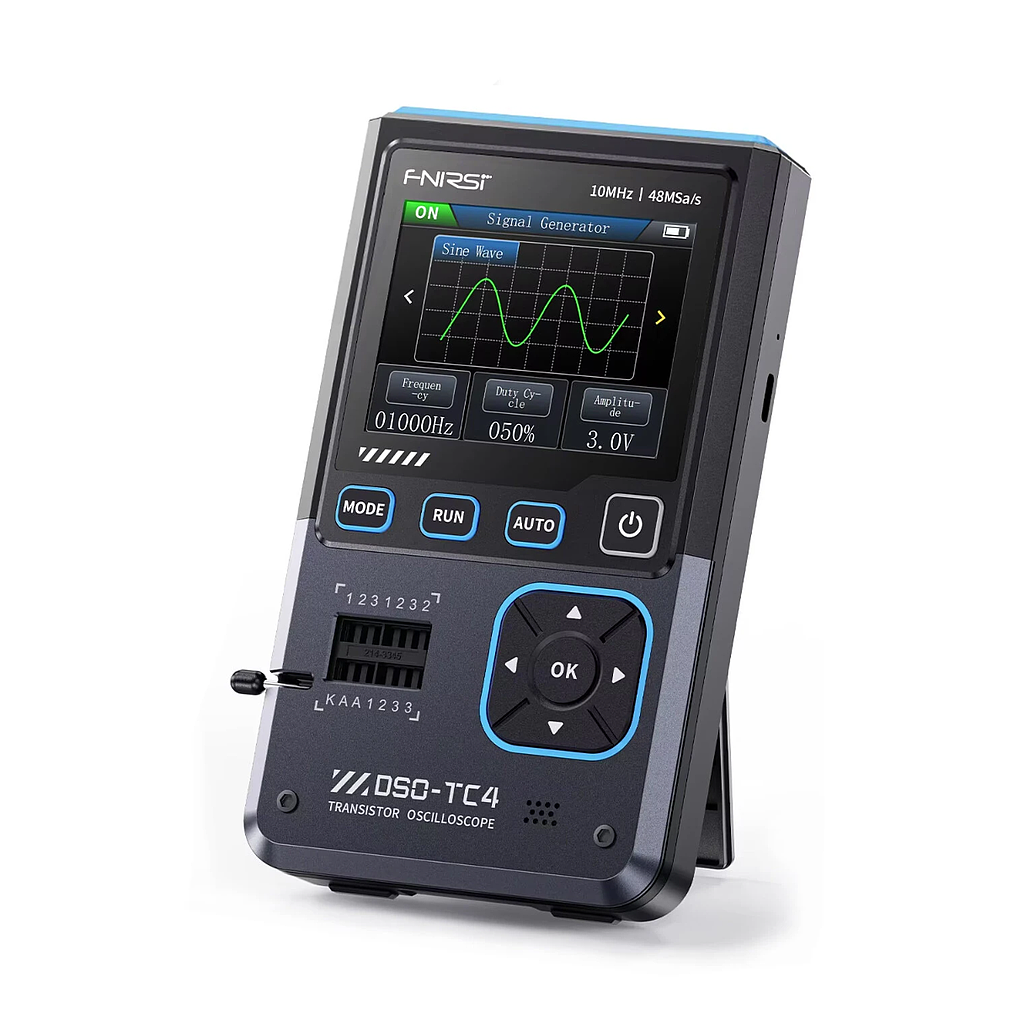

FNIRSI DSO-TC4 Digital Oscilloscope Transistor Tester Signal Generator (10MHz; 48MSa/s, 13 waveform)

Main Parameters

Screen: 2.8-inch TFT Color Screen

Backlight: Brightness Adjustable

Power Supply: TYPE-C（5V/1A）

Battery: 3.7V/1500mAh

Languages: 中文、English、Deutsch、Português、にほんご、Español、한국인、Pyccкий

Size: ≈90x142x27.5mm

Product Weight: ≈186g

Oscilloscope Parameters

Real-Time Sampling Rate: 48MSa/s

Analog Bandwidth: 10MHz

Input Impedance: 1MΩ

Coupling Mode: AC/DC

Test Voltage Range:

1:1 Probe: 80Vpp (+40V)

10:1 Probe: 800Vpp (+400V)

Vertical Sensitivity: 10mV/div~10V/div (X1 range)

Vertical Displacement: Adjustable with indication

Time Base Range: 50ns~20s

Trigger Mode: Auto/Normal/Single

Trigger Type: Rising edge, Falling edge

Trigger Level: Adjustable with indication

Waveform Freeze: Yes (HOLD function)

Automatic Measurement: Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle

Signal Generator Parameters

Output Waveform: Supports 13 waveform outputs

Waveform Frequency: 0-50KHz

Square Wave Duty Cycle: 0-100%

Waveform Amplitude: 0.1V-3.0V

Package List:

DSO-TC4 Host*1

P6100 High Voltage Probe *1

Adapter *1

Type-C Charging Cable *1

Test Hook *3

Alligator Clip *1

User Manual *1

Packing Box *1
