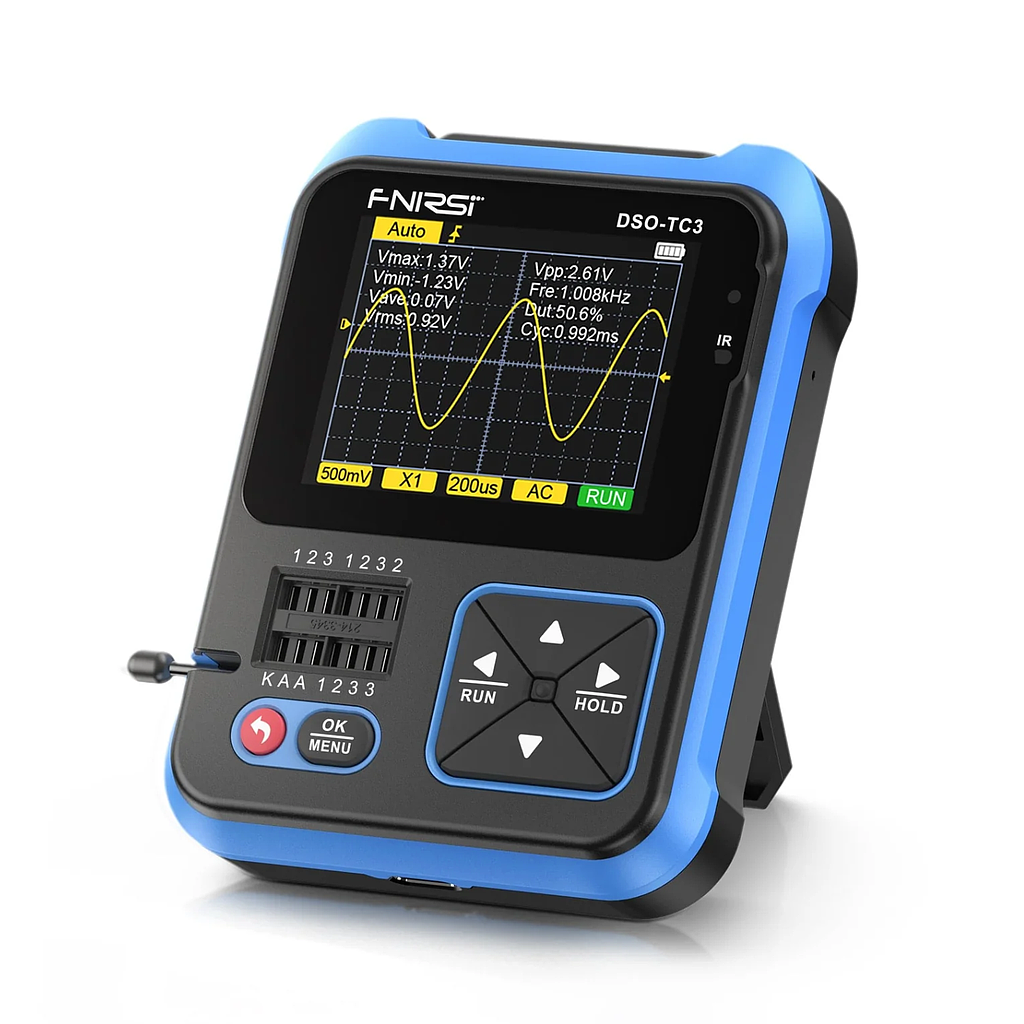

FNIRSI DSO-TC3 Handheld Digital Oscilloscopes (10MSa/s; 500KHz)

Digital Oscilloscope:

Real-time sample rate: 10MSa/s

Analog Bandwidth: 500KHz

Input resistance: 1MΩ

Coupling method: AC/DC

Test voltage range: 400V

Vertical Sensitivity (x1): 10mV-10V

Horizontal time base range: 1us-10s

Trigger mode: Auto / Normal / Single

Trigger type: Rising edge / Falling edge

Waveform Freeze: Yes

Automatic measurement: Yes

Function Signal Generator:

Sine wave: 1-100KHz/0-3.3V/50%

Square wave: 1-100KHz/3.3V/50%

Pulse wave: 1-100KHz/3.3V/0-100%

Triangle wave: 1-100KHz/0-3.3V/50%

Ramp: 1-100KHz/0-3.3V/0-100%

DC: 0-3.3V

Transistor Tester & Tools:

Triodes: β is greater than 10 and less than 600

Diodes: Forward voltage drop <4.5V

Reglulated diode

0.01~4.5V (1-2-3 test area)

0.01~32V (K-A-A test area)

MOSFET: JFET，IGBT，MOSFET

SCRs TRIAC: Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor: 25pF~100mF

Resistor: 0.01Ω~50MΩ

Inductor: 10uH~1000uH

Battery: 0.1~4.5V

Input voltage: 0~40V

DS18B20: 0-85℃

DHT1: 0-60℃/5-95%

Infrared remote decoding: NEC protocol infrared code
