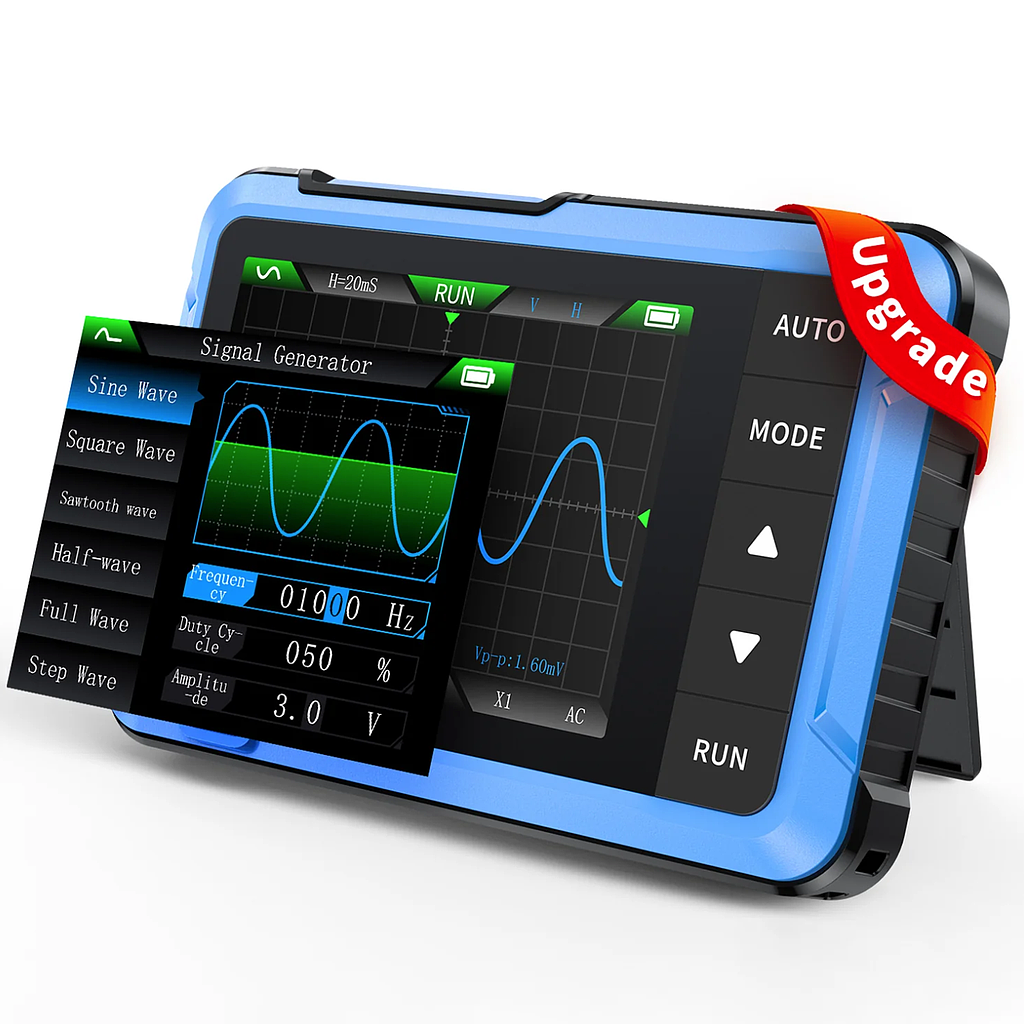

FNIRSI DSO-510 Mini Handheld Digital Oscilloscope Signal Generator (1 channel, 10MHz, 48MS/s)

Basic Parameters *

Display: 2.8 Inches / PPI:320*240

USB Charging: 5V/1A

Lithium Battery Capacity: 1000mAh

Size: 99x68.3x19.5mm

Weight: 104g

* Mini Oscilloscope *

Channel: 1

Sampling Rate: 48MS/s

Bandwidth: 10MHz

Vertical Sensitivity: 10mV/Div-20V/Div (Progress according to the 1-2-5 way)

Time Base Range: 50ns/Div-20s/Div (Progress according to the 1-2-5 way)

Voltage Range

X1: ±40V (Vpp:80V)

X10: ±400V (Vpp:800V)

Trigger Mode: Auto / Normal / Single

Trigger Edge: Rising edge / Falling edge

Coupling: AC/DC

Signal Generator *

Frequency: 0-50KHz

Duty Cycle: 0-100% (rectangular and sawtooth waves)

Amplitude: 0.1-3.0V

Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
