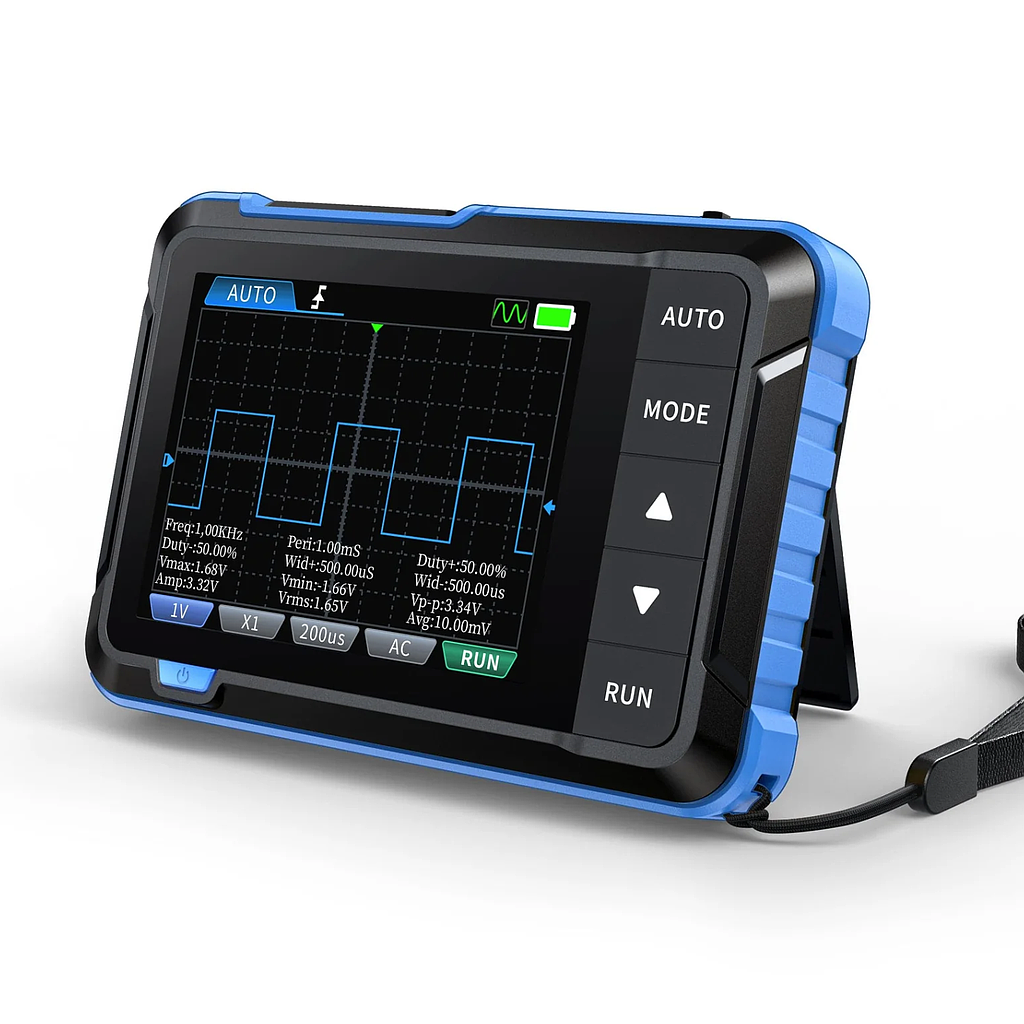

FNIRSI DSO-153 Digital Oscilloscope (1MHz; 5MS/s; 1 channel)

Basic Parameters *

Display: 2.8 Inches / PPI:320*240

USB Charging: 5V/1A

Lithium Battery Capacity: 1000mAh

Size: 99x68.3x19.5mm

Weight: 100g

* Mini Oscilloscope *

Channel: 1

Sampling Rate: 5MS/s

Bandwidth: 1MHz

Vertical Sensitivity: 10mV/Div-10V/Div (Progress according to the 1-2-5 way)

Time Base Range: 500ns/Div-20s/Div (Progress according to the 1-2-5 way)

Voltage Range

X1:±40V (Vpp:80V)

X10:±400V (Vpp:800V)

Trigger Mode: Auto / Normal / Single

Trigger Edge: Rising edge / Falling edge

Signal Generator *

Frequency: 0-10KHz

Duty Cycle: 0-100% (rectangular and sawtooth waves)

Amplitude: 0.1-3.3V

Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
