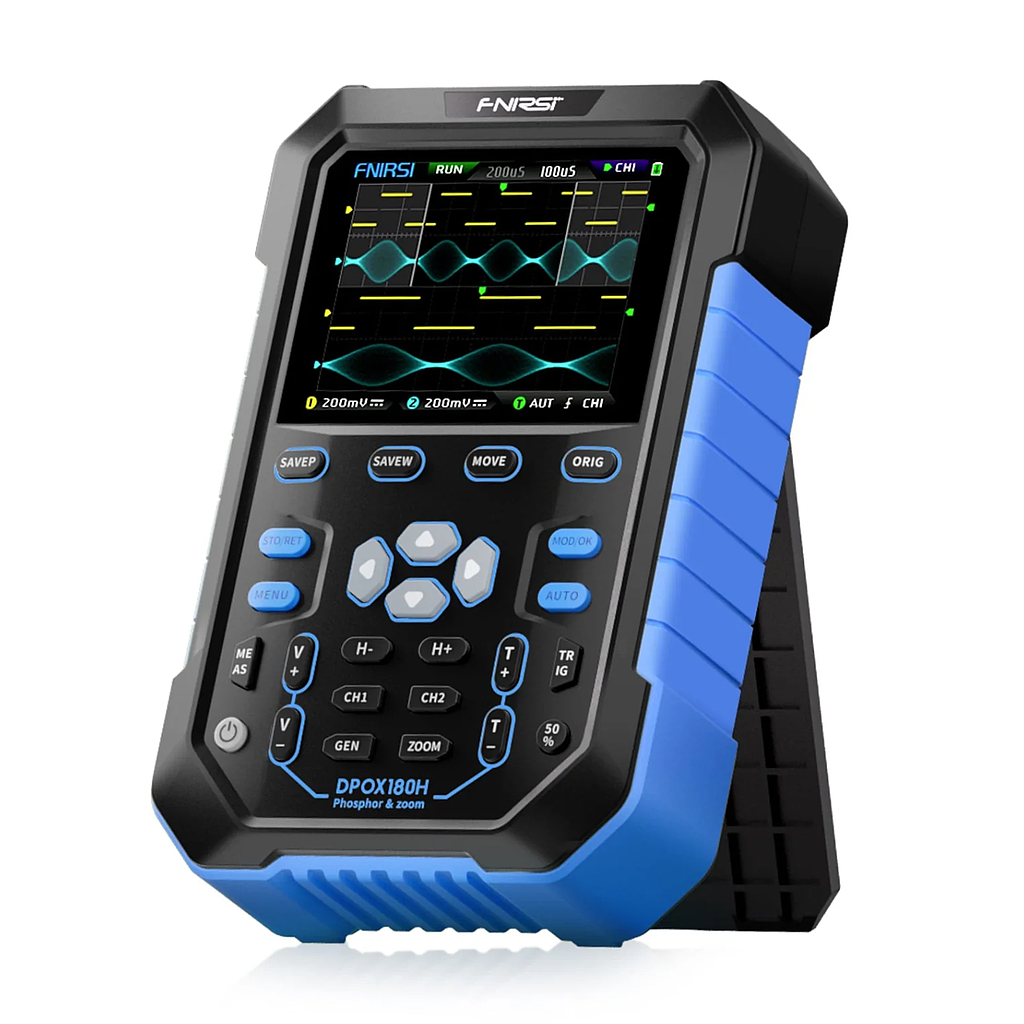

FNIRSI DPOX180H Dual Channel Digital Phosphor Oscilloscope (2CH; 180MHz; 500MS/s)

Number of Channels: 2

Analog Bandwidth: 180MHz

Max Waveform Capture Rate: 50000wfm/s

Real Time Sampling Rate: 500MSa/s

Maximum Sampling Rate: 500MSPS

Input Coupling: DC/AC

Rise Time: 2.5nS

Storage Depth: 120Kpts

Water Resistance Level: IPX6

Input Impedance: 1MΩ-18PF

Vertical Sensitivity: 5mV ~ 10V(1X)

Time Base Range: 5nS ~ 50S

DC Accuracy: ±2%

Time Accuracy: ±0.01%

Measurement Range: 40mV ~ 80V(1X)

Digital Phosphor Technology: Support

Color Temperature Display: Support

Zoom Scaling Time Base: Support

20M Hardware Bandwidth Limitation: Support

Adjustable Automatic Bandwidth Limitation: Support

X-Y Mode: Support

FFT: Support

Cursor Measurement: Frequency / Period / Amplitude

Trigger Detection: Digital Trigger

Trigger Mode: Auto / Single / Normal

Trigger Edge: Rising / Falling

Roll Mode: Support

Screenshot Storage: 90

Waveform Storage: 250 Groups

Capture Signal: 500

Parameter Measurement: 12 Kinds

Signal Generator: 14 Standard Function Signals

Auto-adjustment: Support

Waveform Manager: Support

Waveform Output: Support

High-voltage Burnout Protection: Support

Screen Size: 2.8 Inches

Screen Resolution: 320x240 Pixels

Display Technology: IPS Full View

Expansion Interface: USB Transmission Interface

Auto Power-off: 5 minutes ~ 2 hours

Firmware Upgrade: Support

Charging Requirements: 5V 2A

Battery Capacity: 3000mAh

Standby Time: 3.5 Hours at Full Charge

Dimensions: 135x90x40mm
