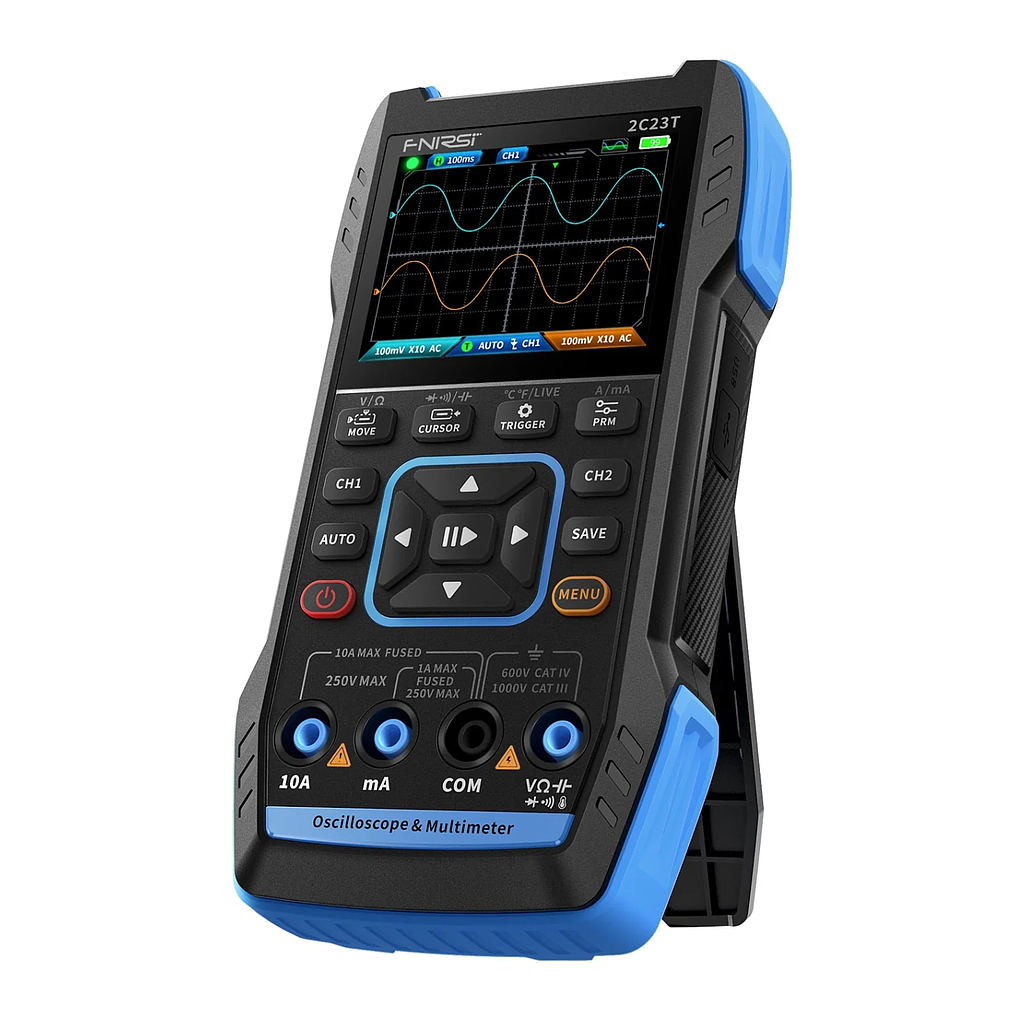

FNIRSI 2C23T Handheld Dual Channel Oscilloscope (2CH, 10MHz, 50MS/s)

Device Parameters

Display Screen: 2.8 inch HD color screen

Resolution Ratio: 320*240

Charging Specifications: TYPE-C (5V/1A)

Battery: 3000mAh lithium battery

Support Functions: Oscilloscope, Signal generator, Multimeter

Language: English

Standby Time: 6 (laboratory theoretical maximum)

Product Volume: 167*89*35mm

Weight: 300g

Oscilloscope Parameter

Channel: Dual channel

Sample Rate: 50M

Analog Bandwidth: 10M(dual channel independent 10M)

Storage Depth: 32kb

Impedance: 1MΩ

Time Base Range: 50ns-10s

Vertical Sensitivity: 20mV/div - 10V/div (X1)

Maximum Measured Voltage: ±400V

Trigger Mode: AUTO / Normal / Single

Trigger Type: Rising edge, Falling edge

Display Mode: YT/Scroll

Coupling Method: AC/DC

Save Waveform Screenshot: Yes

Export Waveform Images: Yes

Multimeter Parameter

DC Voltage

Range: 9.999V / 99.99V / 999.9V

Accuracy: ±(0.5%+3)

AC Voltage

Range: 9.999V / 99.99V / 750.0V

Accuracy: ±(1%+3)

DC Current

Range: 9999μA / 99.99mA / 999.9mA / 9.999A

Accuracy: ±(1.2%+3)

AC Current

Range: 9999μA / 99.99mA / 999.9mA / 9.999A

Accuracy: ±(1.5%+3)

Resistance

① Range: 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω

Accuracy: ±(0.5%+3)

② Range: 99.99MΩ

Accuracy: ±(1.5%+3)

Capacitance

① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF

Accuracy: ±(2.0%+5)

② Range: 9.99mF / 99.99mF

Accuracy: ±(5.0%+20)

Temperature

Range: (-55~1300°C) / (-67~2372°F)

Accuracy: ±(2.5%+5)

Diode: Yes

Continuity Test: Yes

Live Line Detection: Yes

Signal Generator Parameter

Channel: Single channel

Frequency: 1Hz-2MHz

Amplitude: 0.1-3.3V

Output Waveform: Sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC Output

Duty Cycle: 0-100%
