FLUKE VPS410-II-G ScopeMeter Voltage Probe Set (500MHZ)

Attenuation10:1

Bandwidth500 MHz

Max. input voltageCAT III 1000V / CAT IV 600V

Max. voltage to groundCAT III 1000V / CAT IV 600V

Input Resistance10 MΩ

Input Capacitance11.5 ± 1 pF

Compensation range10...25 pF

Cable Length1.2 m (3.9 ft)

SafetyIEC / EN 61010-031

UL 61010-031

CSA C22.2 No. 1010.2.031

Max. Altitude3000 m

Pollution Degree2

Protection ClassII (double insulation)

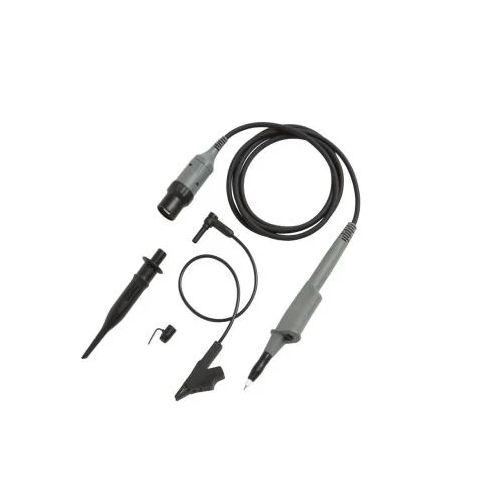

Includes:

(1) Grey voltage probe

(1) Black hook clip for probe tip

(1) Black ground lead with mini alligator clip

(1) Ground spring for probe tip (CAT II 30 V max.)

(1) Insulation sleeve for probe tip
