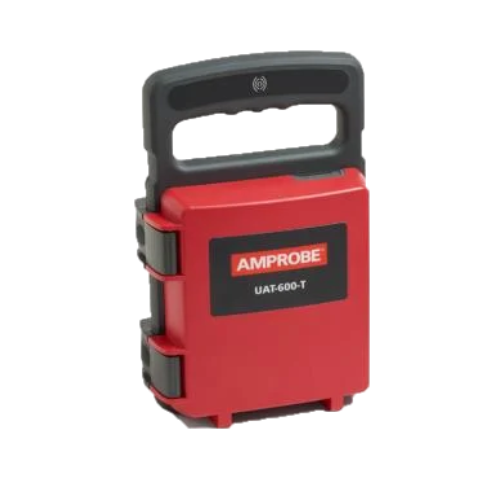

Amprobe UAT-600-T Underground Utilities Locator Kit (Transmitter)

Operating voltage/current: 0 to 600 V

Display backlight: Yes

Audio indication: Fast beeps showing the better signal is applied

Transmitting mode power output: Max. 3 watts

Output voltage: Max. 50 V rms

Output current: Max. 250 mA rms, constant current in 5 steps

Mains voltage measurement: 0 V to 600 V, 50 Hz to 60 Hz

Resistance measurement (De-energized circuit): 0 ohm; to 999 k ohm;-

Output hazardous voltage warning:≥ 30 V rms

Mains hazardous voltage warning: ≥ 30 V rms

Operating temperature and humidity: -4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH

Storage temperature and humidity: -40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH

Operating altitude: < 6561 ft (< 2000 m)

Water and dust resistance: IP54

Drop proof: 3.28 ft (1 m)

Power supply: 1.5 V D cell alkaline batteries

Auto power off: 15 minutes idle

Battery life: Approx. 16 hours at 70 °F (21 °C) (Typical)

Overload protection: 600 V rms

Size (H x W x L): Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)

Weight: Approx. 7.0 lb (3.2 kg) (batteries installed)
