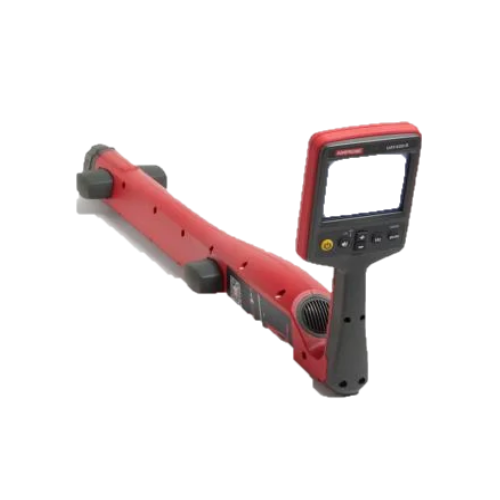

Amprobe UAT-600-R Underground Utilities Locator Kit (Receiver)

Measurement category: CAT IV 600 V

Operating voltage/current: 0 to 600 V

Operating frequency/tracing modes: Active tracing: 33 kHz and 8 kHz

Passive tracing: 50/60 Hz and Radio

Locating modes: Peak and Null

Depth measurement and accuracy: Up to 20 ft

4 in to 10 ft: pm; 3 %

10 ft to 20 ft: pm; 5 %

Display backlight: Automatic

Audio indication: Increasing closer to the signal

Sensitivity adjustment (gain control): Yes

Sensitivity at 1 m (typical): Power: 2 mA

Radio: 20 μA

8 kHz: 5 μA

33 kHz: 5 μA - -

Display: 4.3 in, 320 x 240 BW outdoor LCD display with auto backlight

Update rate: Instantaneous

Operating temperature and humidity: -4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH

Storage temperature and humidity: -40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH

Operating altitude: < 6561 ft (< 2000 m)

Water and dust resistance: IP54

Drop proof: 3.28 ft (1 m)

Power supply: (6) 1.5 V AA alkaline batteries

Auto power off: 15 minutes idle

Battery life: Approx. 35 hours at 70 °F (21 °C) (Typical)

Size (H x W x L): Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm)

Weight: Approx. 4.2 lb (1.9 kg) (batteries installed)
