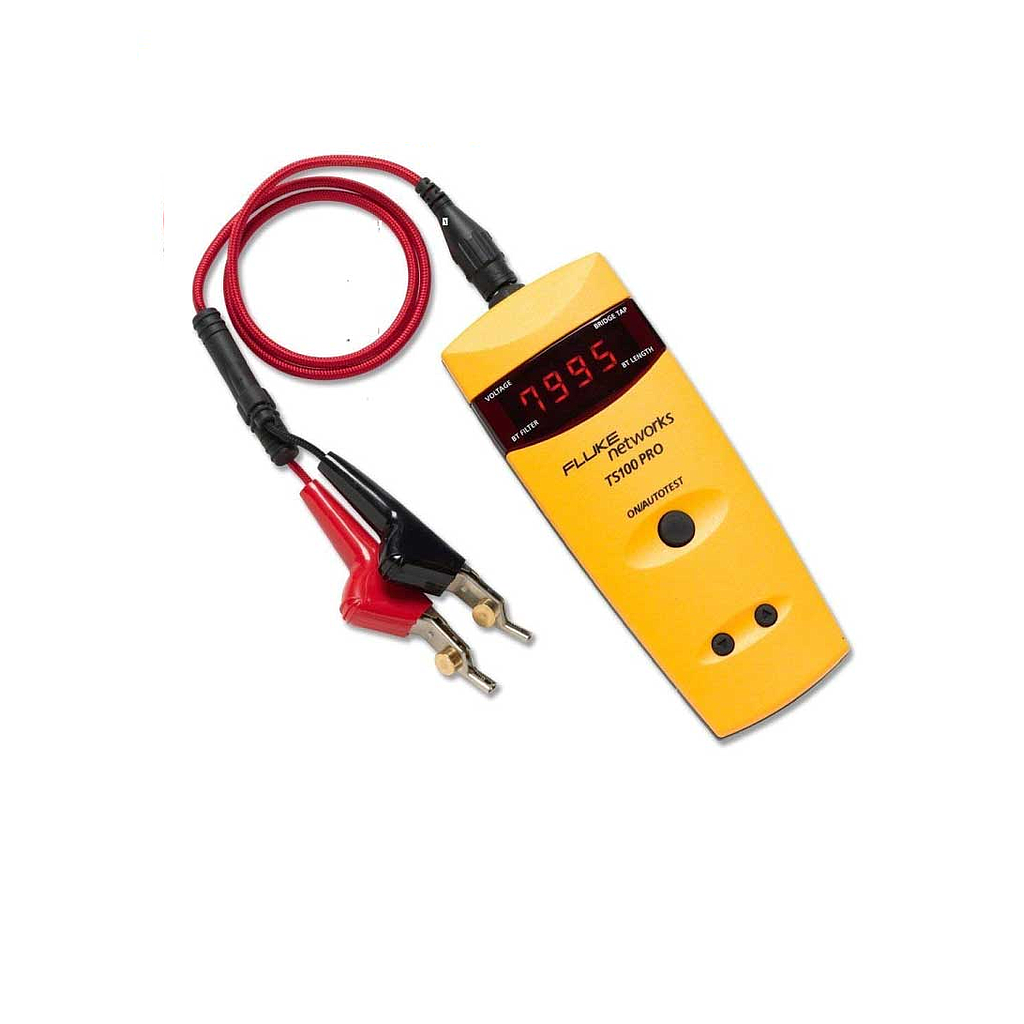

Fluke TS100 Cable fault finder

-Works on any two or more conductor cable up to 2,438m

-Bridge tap detection for xDSL pre-qualification

-Patented SmartTone® tone generator positively identifies pair

-Large LED screen

-High voltage detection

-Cable Type:Virtually all two or more conductor cables

-Representative Maximum Cable Length:2,438m: CAT-5 Twisted Pair

1830m: 12/2 AC Wire,900m: RG-6/U TV Coax,475m: RG-174/U Coax

-Accuracy:±3 %

-VOP:Adjustable from 20 to 99 retained during power off. Default to 66 when batteries are changed.

-High Voltage Detection:An ac voltage of more than 5 V rms will trigger the High Voltage Warning.

-Measurement Technology:Time Domain Reflectometry (TDR) with 100 Ohm drive impedance, 6 V maximum pulse height.

-Impedance Range:35 Ohm to 330 Ohm with auto-compensation within this range

-Power of operation:4 AA alkaline batteries, provide 50 hours

-Certifications and Compliance:CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No.

1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1

26501100:TS100/TS90 line cord, BNC to alligator clip

26501160:TS100/TS90 pouch with belt clip

26501200:TS100/TS90 linecord, BNC to F(MALE)

26501300:TS100/TS90 linecord, BNC to F(FEMALE)

26501700:TS100/TS90 linecord, BNC to banana to ABN

26501600:TS100/TS90 linecord, banana
