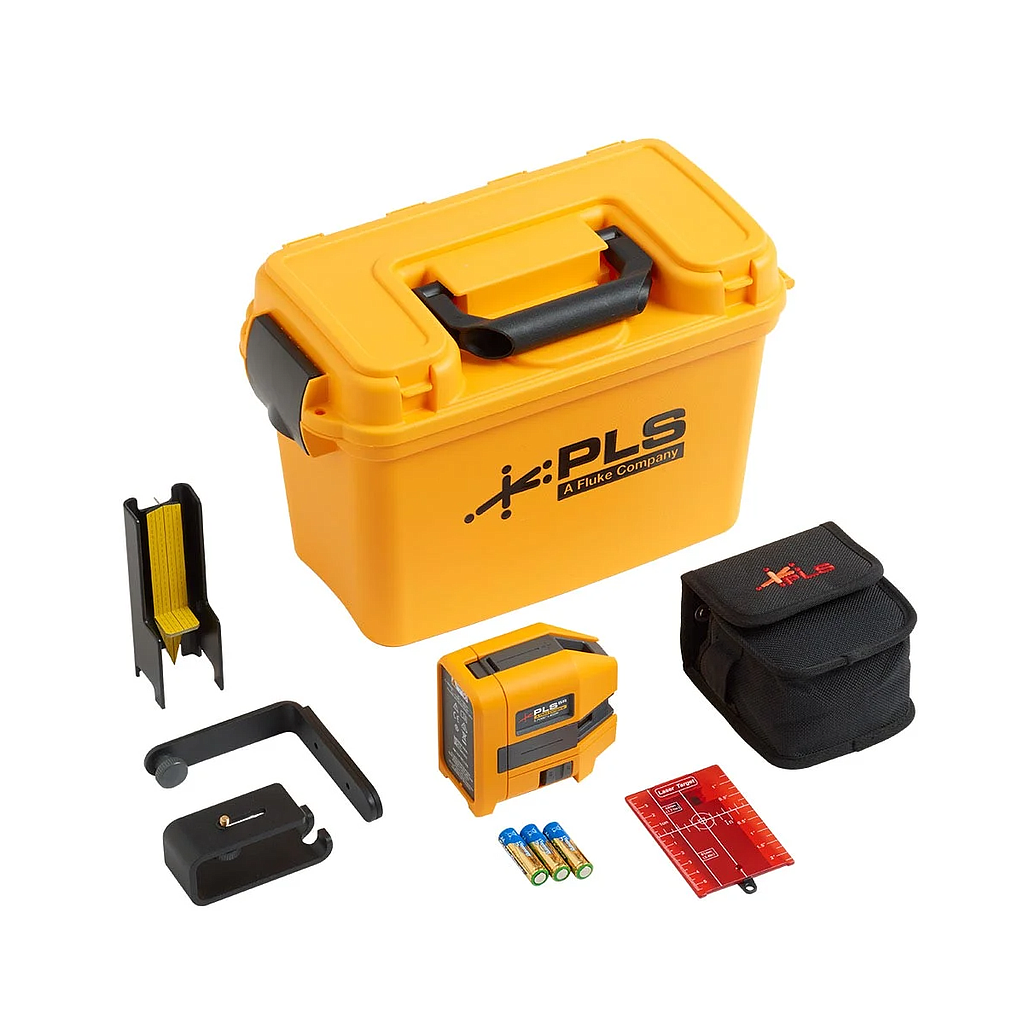

FLUKE PLS 5R KIT 5-Point Red Laser Kit (30m, red laser beam)

Battery: 3 x AA Alkaline IEC LR6

Battery Life, Continuous Use: ≥ 30 hours

Point Laser Direction: 90° up, down, forward

Working Range: ≤ 30 m (100 ft.)

Accuracy: ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)

Laser Leveling:

System: Automatic, Pendulum

Range: 4 °

Point Laser Diameter: ≤ 4 mm at 5 m

Size (H x W X L): 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)

Weight: 0.6 kg (1.3 lb.)

Safety: IEC 61010-1: Pollution Degree 2

Laser: IEC 60825-1:2014 Class 2

Light Source: Semiconductor laser diode

Max Output Power: < 1 mW

Wavelength: 635 nm ± 5 nm
