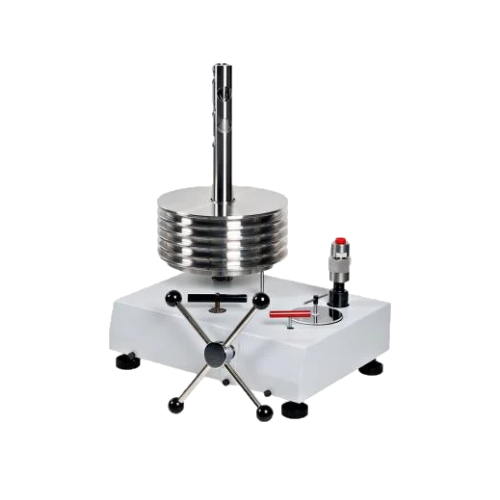

Fluke (Calibration) P3860 Hydraulic Deadweight Testers (500~60,000psi)

Pressure Ranges: 500 to 60,000 psi; or 40 to 4,000 bar; or 4 to 400 MPa; or 40 to 4000 kgf/cm²

Accuracy: Standard accuracy is 0.02% of Reading

Standard weight material: Series 3 non-magnetic austenitic stainless steel

+Weight density: 7.8 g/cm³

Piston material: Tungsten carbide with nickel binder

Cylinder material: Tungsten carbide with cobalt binder

Thermal coefficients of expansion: 11 ppm/°C

Test port adapters: 9/16 – 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP and 3/4 BSP

Instrument weight: 66 lbs. (30 Kg)

Instrument Base only Instrument size: 18 x 13.5 x 19 in (455 x 340 x 478 mm)
