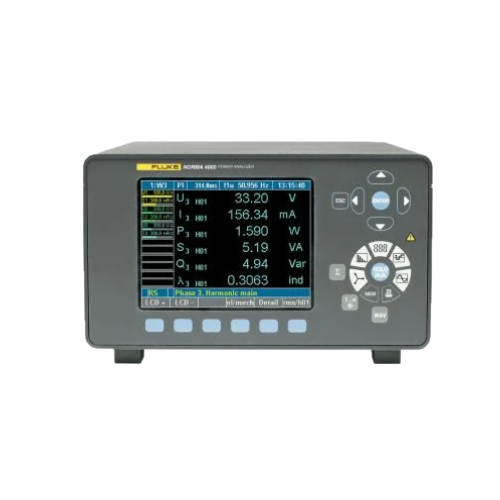

FLUKE Norma 4000 Power Analyzer

Number of Phases: 1 or 3

Bandwidth: dc to 3 MHz or dc to 10 MHz depending on input module

Basic Accuracy: 0.2%, 0.1% or 0.03% depending on input modules

Sampling Rate: 0.33 MHz or 1 MHz depending on input modules

Voltage Input Range: 0.3 to 1000 V

Current Input Range (direct, not via shunt): 0.03 mA – 20 A depending on input module

Current Input Range via shunt: Table Shunts on page 10

Display: Color, 5.7“ / 144 mm - 320 x 240 pixel

Measured data memory: 4 MB

Memory for Settings: Standard

Fast Fourier Transformation (FFT): To the 40th harmonic

RS232 Interface: Standard

PI1 Process Interface (8 analog/impulse inputs and 4 analog outputs): Optional

IEEE 488/GPIB Interface: Optional

Fluke NormaView PC Software (for data download, analysis): Standard

Includes:

Power supply cable

5.7“ / 144 mm color display

RS232/USB interface for data download

Space for three power-phases and options

Fluke NormaView PC software

User’s manual

Test certificate

Calibration values
