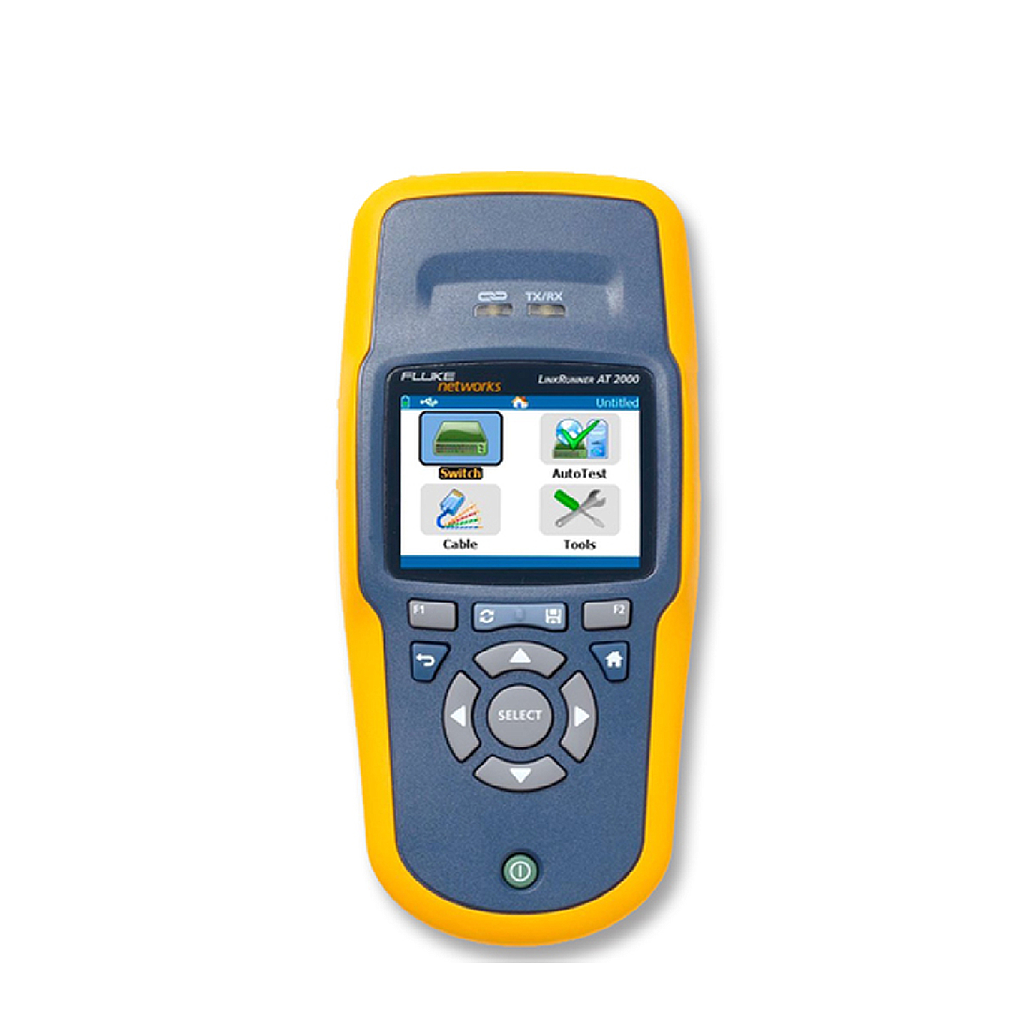

FLUKE LRAT-2000 Network Tester

-Fast answers: Network Auto-Tester accurately identifies network connectivity problems in 10 seconds

-Two models available: LRAT-2000 adds fiber, TruePower™ PoE loading, IPv6, reflection, Li-ion battery pack and 50 reports instead of 10

-Verify and test network connectivity at 10M/100M/1G on copper and fiber: Instantly verify link status, connectivity type, and signal strength

-Nearest switch and VLAN information: Displays the VLAN and nearest switch model, slot and port

-Cabling: Test installed cabling and patch cords

-TruePower PoE testing: Quickly test and validate PoE performance by drawing actual power up to the 802.3at standard 25.5W

-Document results: Store up to 50 network connectivity test results and download to your PC

-Instant-on: Boots in under 3 seconds; six-hour battery life

-Cable Tests: Pair lengths, opens, shorts, splits, crossed, straight through and cable ID

-Media Access Fiber: SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only)

-Media Access Copper: RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at); 100BASE FX and 1000

-Certifications and Compliance: Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association

-Battery: Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs), Typical operating life is 5.5 hours Typical charge time is 3 hours.

-External AC adapter/charger: AC input 90-264 Vac 48-62 Hz input power DC output 15 Vdc at 1.2 amps

-Display: 2.8 in color LCD (320 x 240 pixels)

-Host interface: USB 5-pin mini-B

Fn-LinkRunnerAT-2000_01b_c

Fn-LinkRunnerAT-2000_24a_c

Fn-LinkRunnerAT-2000_25a_c

Fn-LinkRunnerAT-2000_29a_c

This model Fluke sold to Netally LRAT-2000 (see information at Netally).
