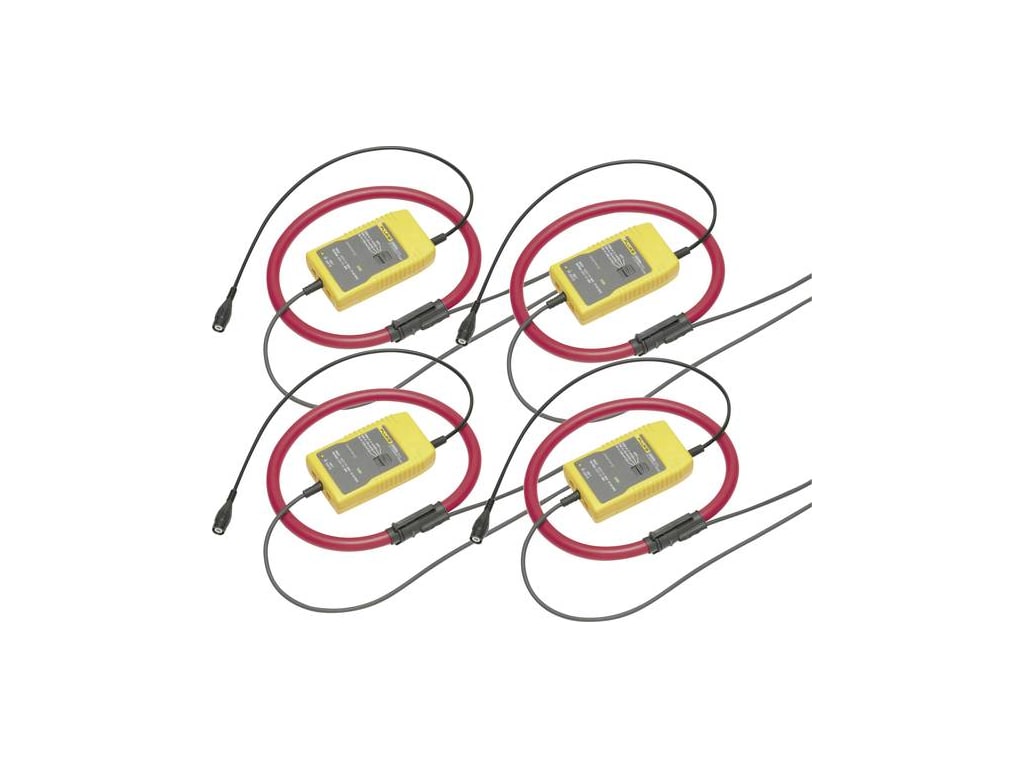

FLUKE I3000 FLEX-4PK Flex AC Current Clamp (AC 3000 A, 50 kHz, pack 4, For oscilloscopes)

Current ranges30 A,300 A, 3000 A AC rms

Output sensitivity (AC-coupled)100 mV, 10 mV, 1 mV per A

Load impedance: 100 kΩ minimum

Accuracy: at +25°C ±1% of range (45 Hz to 65 Hz)

Linearity: 0% to 100% of range ±0.2% of reading

Noise: 8 mV AC rms (30 A), 2 mV AC rms (300 A, 3000 A)

Frequency range: 10 Hz to 50 kHz (-3 dB)

Output connection: 0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter

Datasheet
