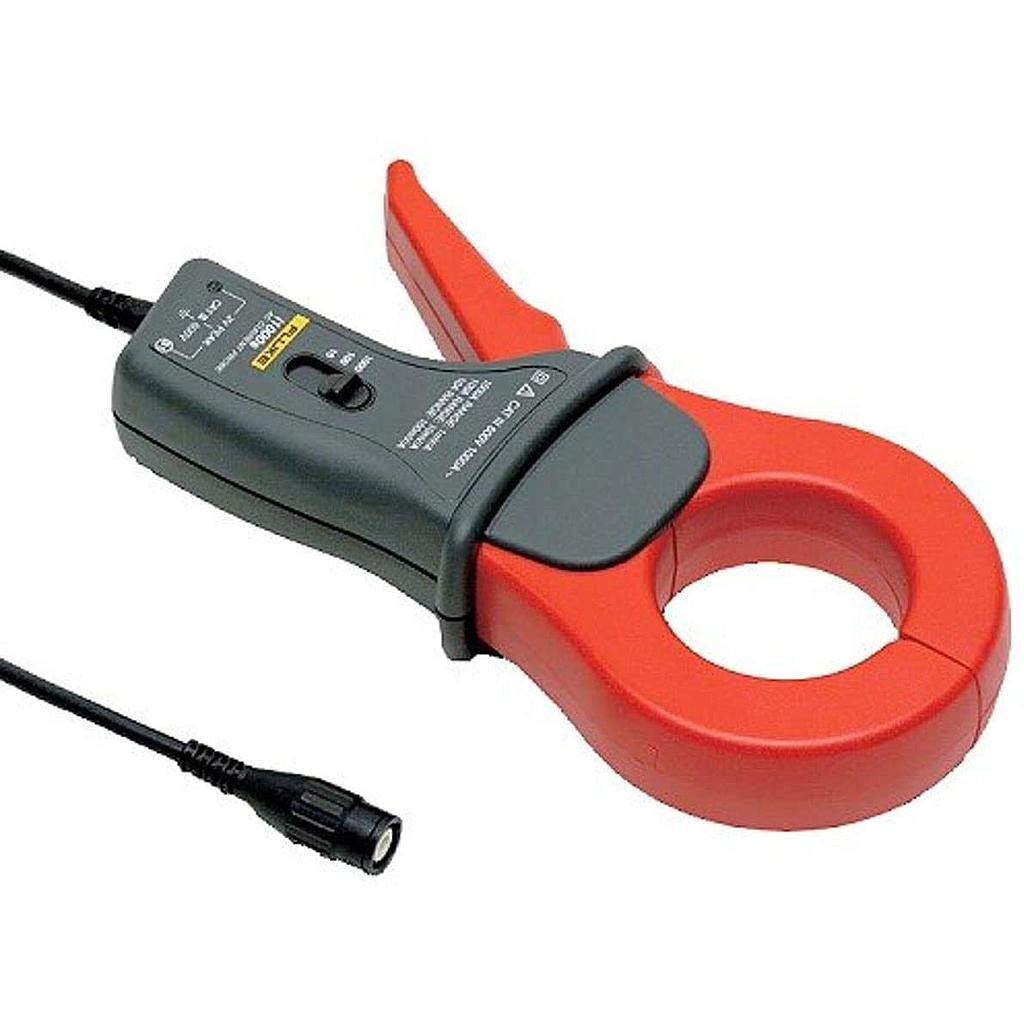

FLUKE I1000s AC Current Probe (100 mA - 1000 A rms)

The Fluke i1000s is a clamp-on AC current probe designed to expand oscilloscope applications in industrial and power environments. Ideal for measuring distorted current waveforms and harmonics.

Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking the circuit

Basic accuracy : 1% reading + 1 A (48-65 Hz)

Useable frequency : 5 Hz - 100 kHz

Nominal current range

10 A

100 A

1000 A

Continuous current range

0.1 A - 10 A

0.1 A - 100 A

1 A - 1000 A

Maximum non-descructive current:2000 A

Lowest measureable current:0.1

Basic accuracy:1% + 1 A (48-65 Hz) (% reading + floorspec)

Useable frequency:5 Hz - 100 kHz

Output level(s)

100 mv/A

10 mv/A

1 mv/A

Safety Specifications

Safety:CAT III, 600 V CAT IV, 300V

Maximum voltage:600 V AC

Mechanical and General Specifications

Maximum conductor diameter:54 mm

Output cable length:1.6 m

BNC adapter:Yes
