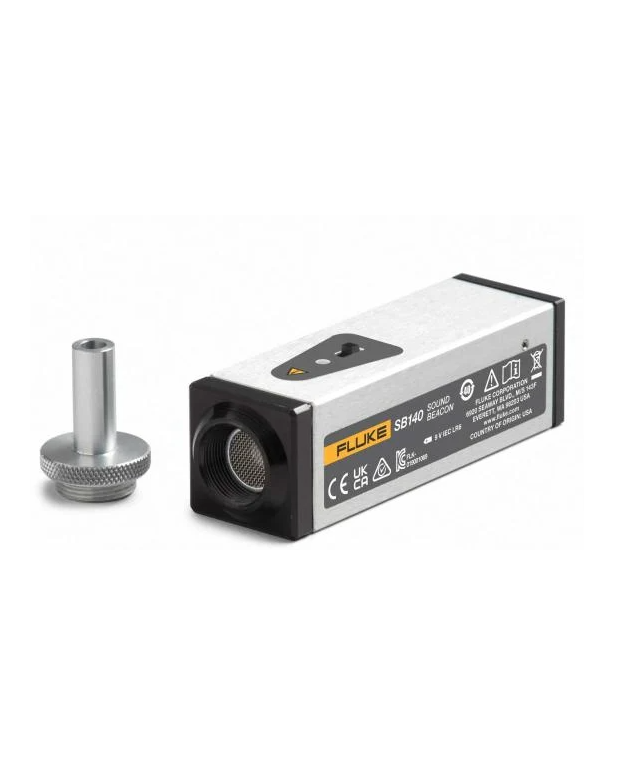

FLUKE FLUKE-SB140 Sound Beacon (40KHZ)

General specifications

Operating temperature: -20 °C to +54 °C (-4 °F to 130 °F )

Storage temperature: -40 °C to +55°C (-40 to 131 °F), without battery

Relative humidity: 10 to 95 %, non-condensing

Ingress protection (IP): IEC 60529: IP40

Size of device (H x W x L): (32x32x105) mm, (1.26x1.26x4.125) in

Housing: Extruded Aluminum

Weight: Sound Beacon: 175 g (6.2 oz), battery included

Weight (acoustic probe): 12 g (0.45 oz)

Battery life: > 300 hours

Power supply: 9-volt alkaline (included)

Sound frequency: 40 kHz ± 1.5 kHz

Controls: on/off switch

Safety

General Safety: IEC 61010-1: Pollution degree 2

Electromagnetic Compatibility (EMC) International: IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A

Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication)

USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Included with Product

FLUKE-SB140 1. Sound Beacon unit

2. 9V Battery

3. Soft Case

4. Accessory 1 inch probe

5. Instruction Sheet
