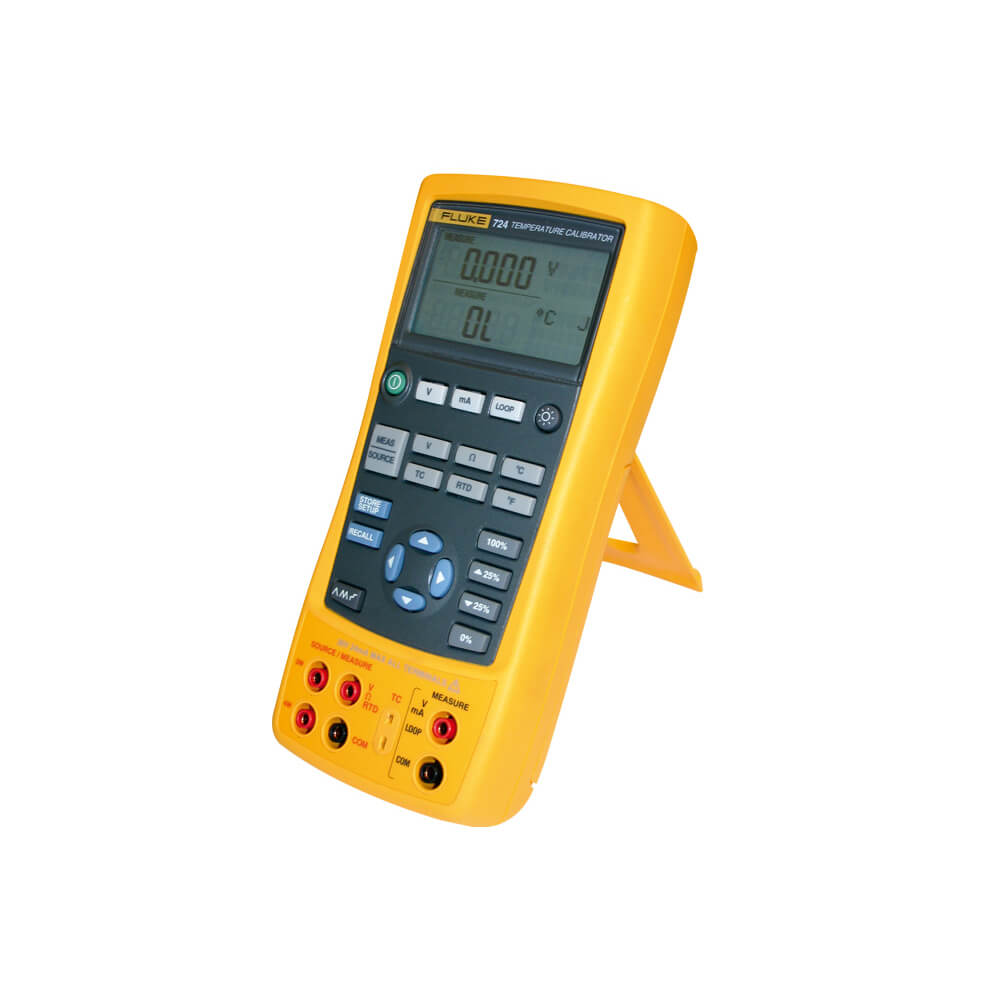

Product image

FLUKE FLUKE-724/APAC/EMEA Temperature Calibrator (RTDs và Thermocouples)

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-724/APAC/EMEA

P/N5131125

OriginChina

USD 3,518.15

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Source/Measurement Voltage DC

+ 30.000 V, 20.000 V, 100.00 mV/0.02%+ 2 counts

+ -10.00 mV to 75.00 mV/0.025 % + 1 count

- Measurement Current DC: 24.000 mA/0.02%+ 2 counts

- Source/Measurement Resistance

+ 0.0 to 400.0 Ω/0.1Ω (4-wire), 0.15Ω (2- and 3-wire)

+ 401 to 1500 Ω/0.5Ω (4-wire), 1Ω (2- and 3-wire)

+ 1500 to 3200 Ω/1Ω (4-wire), 1.5Ω (2- and 3-wire)

- RTDs and Thermocouples: NI-120, PT100, PT200, PT500, PT1000, J, K, T, E, R, S, B, L, U, N, XB, BP

- Loop Power Function: 24V/Max22mA

Batteries: Four AA alkaline batteries.

Size: 96 x 200 x 47 mm

Weight: 650 g

including:

AC70A Test Clips

One pair of stackable test leads

TL75 Test Leads

CE and CSA Markings

Manuals in English, French, German, Spanish, Italian, Portugese, Korean, Chinese and Japanese

Users manuals on CD-ROM

NIST- traceable calibration report and data

Includes:

AC70A Test Clips

One pair of stackable test leads

TL75 Test Leads

CE and CSA Markings

Manuals in English, French, German, Spanish, Italian, Portugese, Korean, Chinese and Japanese

Users manuals on CD-ROM

NIST- traceable calibration report and data

Datasheet

Manual

Specifications: Fluke 724 Temperature Calibrator

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	20.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025 % + 1 count (via TC connector)
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-20°C to 71°C
Humidity (without condensation)	90%	10°C to 30°C
	75%	30°C to 40°C
	45%	40°C to 50°C
	35%	50°C to 55°C
Safety Specifications
Safety rating	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Mechanical and General Specifications
Size	96 x 200 x 47 mm
Weight	650 g
Batteries	Four AA alkaline batteries

Battery life	25 hours typical
Shock and vibration	Random, 2 G, 5-500 Hz
