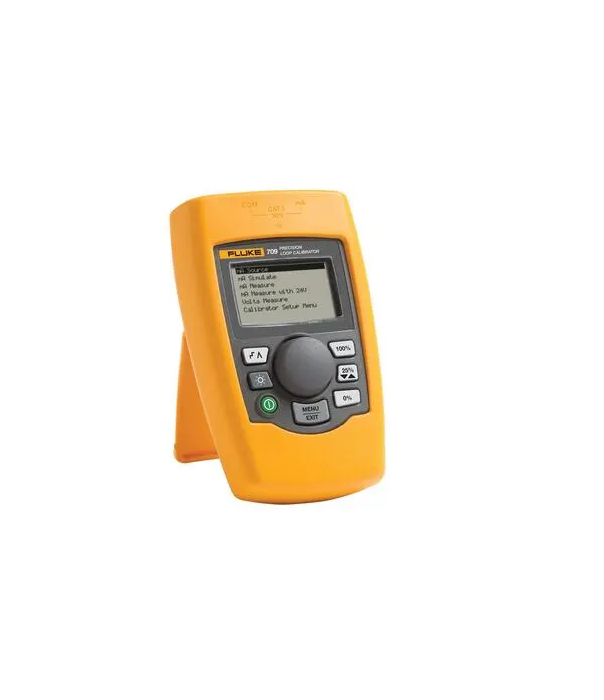

FLUKE FLUKE-709/APAC Precision Loop Calibrator (Source 0-24 mA, measure (0-24mA, 0-30V))

Ranges: mA (0 to 24 mA) and Volts (0 to 30 V DC)

Resolution: 1 µA on mA ranges and 1 mV on voltage range

Accuracy: 0.01% ± 2 counts, all ranges (@23° ± 5°C)

Operating temperature range: -10°C to 55°C (14°F to 131°F)

Humidity range: 10 to 95% non-condensing

Stability: 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C

Display: 128 x 64 pixels, LCD graphic w/backlight, .34 high digits

Power: 6 AAA alkaline

Battery life: 40 hours typical

Loop compliance voltage: 24 V DC @ 20 mA

Over-voltage protection: 240 V AC

Overload current protection: 28 mA DC

EMC: EN61326 Annex A (Portable Instruments)

Dimensions (L x W x D): 15 x 9 x 3 cm (6 x 3.6 x 1.3 in)

Weight: 0.3 kg (9.5 oz)

Includes:

AC175 Alligator Clip Set

TL75 Test Leads

Soft Case

Six AAA Batteries (Installed)

Product Manual CD-ROM

Quick Reference Guide

Safety Information
