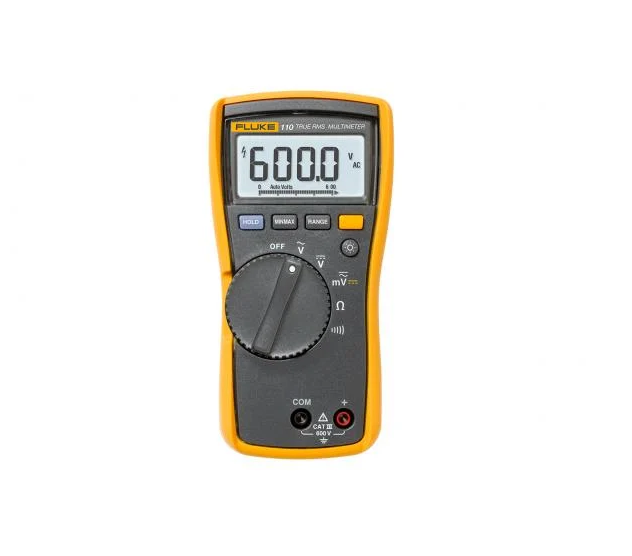

FLUKE FLUKE-110/APAC True-rms Digital Multimeter (FLUKE-110, 600VAC/DC, True-RMS)

Maximum voltage (between any terminal and earth ground): 600V

Safety: IEC 61010-1, Pollution degree 2; IEC 61010-2-033, CAT III 600 V

Display: Digital: 6,000 counts, updates 4/sec

Bar graph:33 segments, updates 32/sec

Temperature

+ Operating: -10 °C to + 50 °C

+ Storage: -40 °C to + 60 °C

Battery: 9 volt Alkaline, IEC 6LR61

Battery life: 400 hours typical, without backlight

Measurement Range

+ DC millivolts: 600.0 mV

+ DC volts: 6.000 V; 60.00 V; 600.0 V

+ AC millivolts1 true-rms: 600.0 mV

+ AC volts1 true-rms: 6.000 V; 60.00 V; 600.0 V

+ Continuity: 600 Ω

+ Ohms: 600.0 Ω; 6.000 kΩ; 60.00 kΩ; 600.0 kΩ; 6.000 MΩ; 40.00 MΩ
